| Brand Name: | TICO |
| Model Number: | STC-XQM-0.2A |
| MOQ: | 1 Set |
| Price: | USD2200~USD5000 |
| Delivery Time: | 7-10 working day |
| Payment Terms: | T/T |
Brief Introduction

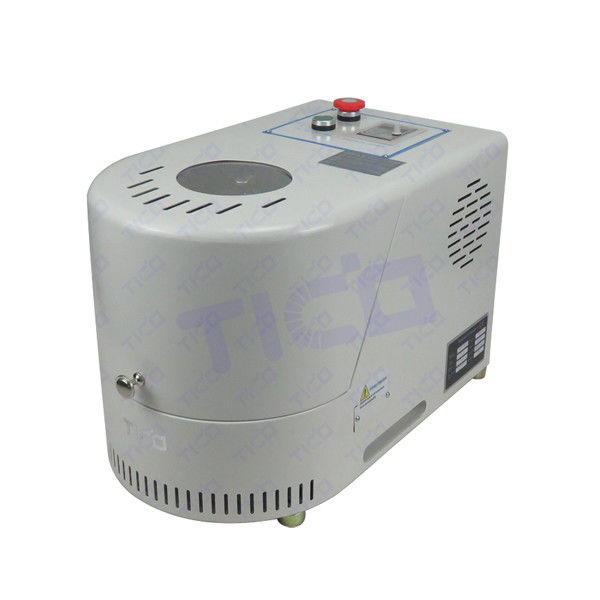

STC-XQM-0.2A planetary ball milling machine is widely used for geology, mine, metallurgy, electric industry, construction, ceramics, chemicals, light industry, medicine, etc. Different volume & different material of milling jar is optional according to the milled material. It is small size, low noise and high efficiency for laboratory.
Features
• Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
• Adopts planetary movement principle, which has high speed, large energy, high efficiency, small granularity.
• 4 milling containers included, 4 different material can be milled at same time.
• Rotating speed is adjustable by frequency converter.
• With functions of timing power off, self-timing forward and reversal rotating. One-way direction, alternation, continuous, time mode can be set.
• Different material of milling jar & balls optional.
• Compact size, low noise.
• Visible window to observe the operation.
Technical Details
| Model | STC-XQM-0.2A |
| Working voltage | AC110V/220V optional |
| Volume of container | 50ml/container ,total 0.2L |
| Container qty | 4pcs |
| Transmission mode | Gear drive |
| Working mode | 2 or 4 containers can be used each time |
| Max loading | 2/3 of milling container |
| Feeding material |
Soft and crispy material≤10mm, other material≤3mm |
| Output granularity | Min reach to 0.1µm |
| Power | 0.25KW |
| Total running time setting | 1~9999 min |
| Alternating Run Time of Forward & Reversal Rotation | 1~999 min |
| Max continuous working time | 72 hrs |
| Speed |
Revolution: 35~355rpm / Rotation: 70~670rpm |
| Noise | 58±5db |
| Dimension | L250* W425 * H280mm |
| Weight | 30kg |
Warranty
1 year warranty with lifetime support.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
|
|
