Product Details:
|
| Product Name: | Automatic Film Coating Machine | Heating Type: | Top Heating |
|---|---|---|---|
| Vacuum Pump: | Built-in | Max Heating Temperature: | 150℃ |
| Coating Length: | 250mm Maximum | Doctor Blade: | 100mm Fixed Width As Standard, Other Size Optional |
| High Light: | Automatic Battery Coating Machine,250mm Battery Coating Machine,Top Heat Automatic Film Coating Machine |
||

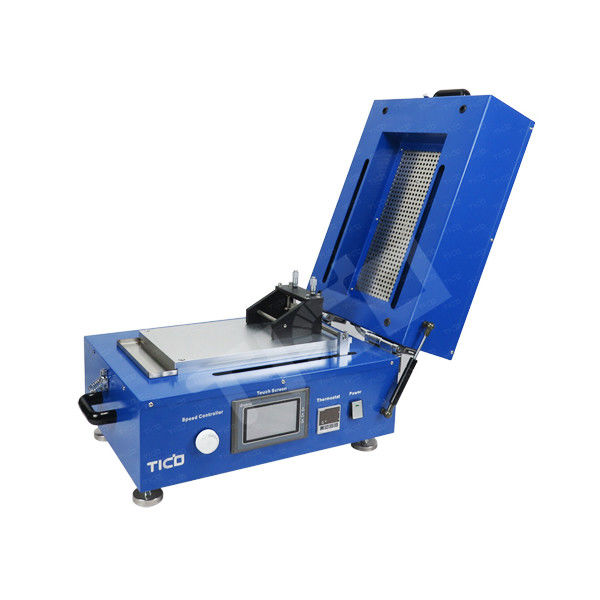

Automatic Film Coating Machine with Top Heat Cover for Battery Research
Brief Introduction
STC-TMH250 is a compact film tape casting machine with vacuum chuck, which widely used in all kinds film coating research, like ceramic films, crystal films, lithium battery electrode coating, etc. It is designed with top cover heating, the heating temperature up to 150℃ adjustable and digital display.
Features
• Touch screen operation, high automation.
• Vacuum aluminium chuck is designed for quick suction of substrate.
• Built-in vacuum pump is designed.
• Coating stroke length can be set.
• Heating temperature up to 150℃ adjustable, and it's digital display.
Technical Parameters
| Working voltage | AC220V |
| Coating length | Max 250mm adjustable |
| Doctor blade | 100mm fixed width as standard, other size is optional |
| Coating thickness | 0.01~3.5mm adjustable |
| Vacuum chuck | L365 x W200 x H30mm |
| Vacuum pump | Internal |
| Coating speed | 0~200mm/s adjustable |
| Heating method | Top cover heating |
| Heating temperature | RT~150℃ adjustable, digital display |
| Heating temperature accuracy | ±1℃ |
| Dimension | L500 x W310 x H330mm |
| Weight | 45kg |
Warranty
1 year's warranty with lifetime support.
FAQ
1. Are you a manufacturer ?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 years experience for manufacturing battery lab research equipment. We own a professional R& D department.
2. Do you accept customized product ?
A : Yes. Most of our products can be customzied to meet different requirements.
3. Will you provide test video before dispatch?
A : Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service ?
A : Yes, we can dispatch professional engineer for on-site installation service.
