Laboratory Desktop Manual Coin Cell Electrode Disc Punching Machine

Brand Name:	TICO
Model Number:	STC-ASC-24
MOQ:	1 Set
Price:	Negotiable
Delivery Time:	3-5 working days
Payment Terms:	L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Product Name:

Lab Resarch Coin Cell Disc Cutter

Material:

Metal

Feature:

Compact

Opeation:

Manual

Size:

L150xW170xH235mm

Weight:

6 Kg

Packaging Details:

Wood Packing

Supply Ability:

200 sets per month

Highlight:

Manual Coin Cell Disc Cutter

Laboratory Coin Cell Disc Cutter

Desktop Disc Punching Machine

Product Description

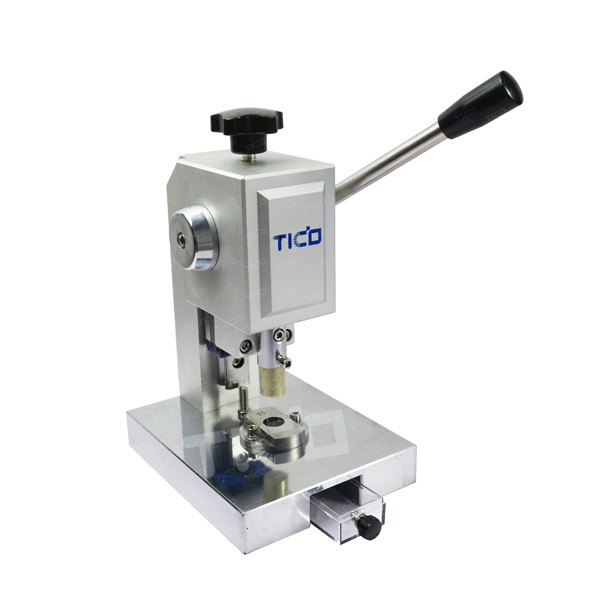

Laboratory Desktop Manual Coin Cell Electrode Disc Punching Machine

Brief Introduction

This compact disc cutter is used for precise round disc cutting. Standard cutting die φ5~24mm can be optional. It is available to cut various metal and foil thickness 0.005 ~ 0.5mm, especially it's a perfect tool for cutting coin cell electrode and separator. It is small size can be put into glovebox through antechamber.

Key Features

• Different size of cutting die can be optional. Standard die φ5~24mm.

• Fast to change the cutting die.

• High accuracy, no burrs and dents.

• Various of battery material with thinkness 0.005-0.5mm can be cut.

• Small dimension, convenient operation, quick and flexible use into glovebox.

• The machine body is made of anti-corrosion material that have excellent anti-rust performance.

Technical Parameter

Model	STC-ASC-24
Cutting die	φ5~24mm optional, customized size is available
Cutting material thickness	0.005~0.5mm various of battery material
Punching pressure	≥300kg
Punching stroke	25mm
Hand rocker diameter	10mm
Operation mode	Manual
Dimension	L150xW170xH235mm
Weight	6kg

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
