Product Details:
|
| Product Name: | Battery Research Electric Rolling Press Calendar | Working Voltage: | AC110/220V Optional |
|---|---|---|---|
| Feature: | Digital Display | Roller Size: | φ100xW100mm. 150mm /200mm /250mm Optional |
| Pressing Thickness: | 0~2mm Adjustable | Pressing Speed: | 0~10mm/s Adjustable |
| High Light: | 100mm Coin Cell Lab Equipment,Adjustable Coin Cell Lab Equipment,Small Calendering Machine |
||

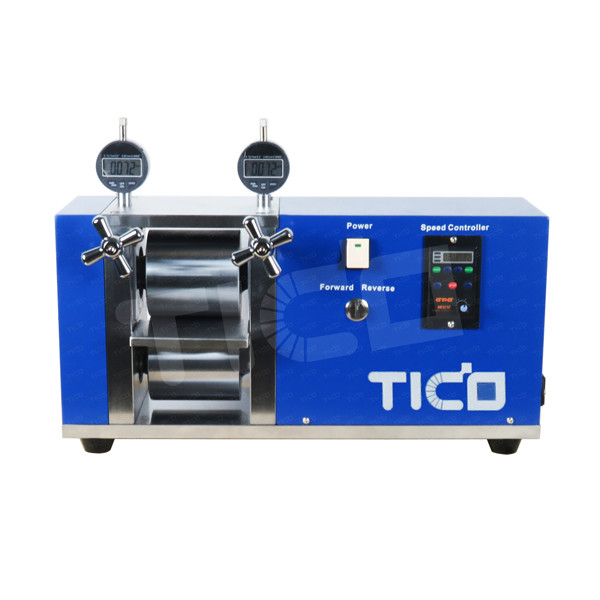

100mm Width Roller Electric Rolling Press Calender Machine with Adjustable Speed
Brief Introduction
STC-DCM100 is used for battery electrode rolling press for battery research after coating and drying. It is with digital dial indicator, easy to operate. The pressing speed is digital display.
Features
● Pressing thickness is adjustable and digital display.
● Rolling pressing speed is digital display.
● Vertical rollers installation design for convenient feeding and pressing for strip material.
● Forward & backward are available.
● Electric pressing makes uniform pressing force.
Technical Parameter
| Model | STC-DCM100 |
| Working voltage | AC110V/220V optional |
| Roller size | φ100xW100mm. 150mm /200mm /250mm width roller optional |
| Roller hardness | >HRC62 |
| Pressing thickness | 0~2mm adjustable |
| Digital Micrometer | resolution 0.01 and 0.001mm optional |
| Pressing speed | 0~10mm/s adjustable, digital display |
| Power | 120W |
| Dimension | L390 * W250 * H356mm |
| Weight | 60kg |
Warranty
1 year warranty with lifetime support.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
