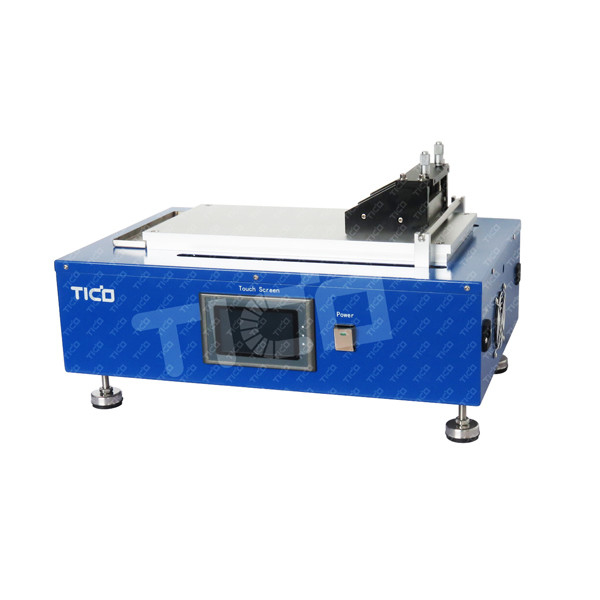

300mm Coating Stroke Compact Tape Casting Film Coating Machine for Coin Cell

Brand Name:	TICO
Model Number:	STC-TM-300
MOQ:	1 Set
Price:	Negotiable
Delivery Time:	15~ 20 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Product Name:

Battery Electrode Film Coating Machine

Max Coating Stroke Length:

300mm Adjustable , Customizable

Doctor Blade:

100mm Fixed Width As Standard, Ajustable Width Optional

Doctor Blade Thickness:

0~5mm Adjustable

Vacuum Pump:

Internal

Coating Speed:

0~100mm/s Adjustable

Packaging Details:

Wood Packing

Supply Ability:

80 sets per month

Highlight:

Adjustable Coin Cell Lab Equipment

100mm Coin Cell Lab Equipment

Compact Tape Casting Film Coating Machine

Product Description

300mm Coating Stroke Compact Tape Casting Film Coating Machine for Coin Cell

Brief Introduction

The product is an advanced equipment designed for coatings various substrates. It is widely used in all kinds of material film coating, like ceramic films, crystal films, battery material film, and special nano films etc. The device boasts a high-precision control system that guarantees uniform and accurate coating, making it an indispensable tool for both research and battery manufacturing.

Features

• Touch screen operation, high automation.

• Vacuum aluminium chuck is designed for quick suction of substrate.

• Coating stroke length is adjustable.

• Coating speed can be set

• Black doctor blade, easy to clean.

Technical Parameter

Model	STC-TM-300
Voltage	AC220V±10%, 50Hz
Power	0.5KW
Coating stroke	300mm adjustable ( customized size is available )
Doctor blade	100, 150mm width is optional, fixed width and adjustable width is optional
Doctor blade thickness	0~5mm adjustable
Coating accuracy	±3μm
Vacuum chuck size	L415 * W200 * H23mm
Vacuum chuck	Aluminum flat chuck with vacuum for convenient suction of the substrate
Vacuum pump	Built-in type
Coating speed	0~100mm/s adjustable
Dimension	L550 * W310 * H330mm
Weight	50kg

Warranty

1 year warranty with lifetime support.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R& D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
