Compact Desktop Film Coating Machine with Adjustable Coating Stroke

Name: Compact Desktop Film Coating Machine with Adjustable Coating Stroke
Brand: Shenzhen TICO Technology Co.,Ltd.
SKU: STC-TM-300
Price: 2,900.00 USD
Availability: InStock

Brand Name:	TICO
Model Number:	STC-TM-300
MOQ:	1 Set
Price:	Negotiable
Delivery Time:	15~ 20 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Product Name:

Battery Electrode Film Coating Machine

Max Coating Stroke Length:

300mm Adjustable , Customizable

Doctor Blade:

100mm Fixed Width As Standard, Ajustable Width Optional

Coating Thickness Range:

0~5mm Adjustable

Vacuum Pump:

Internal

Coating Speed:

0~100mm/s Adjustable

Packaging Details:

Wood Packing

Supply Ability:

50 sets per month

Highlight:

Desktop Coin Cell Lab Equipment

adjustable Coin Cell Lab Equipment

Automatic Film Coating Machine

Product Description

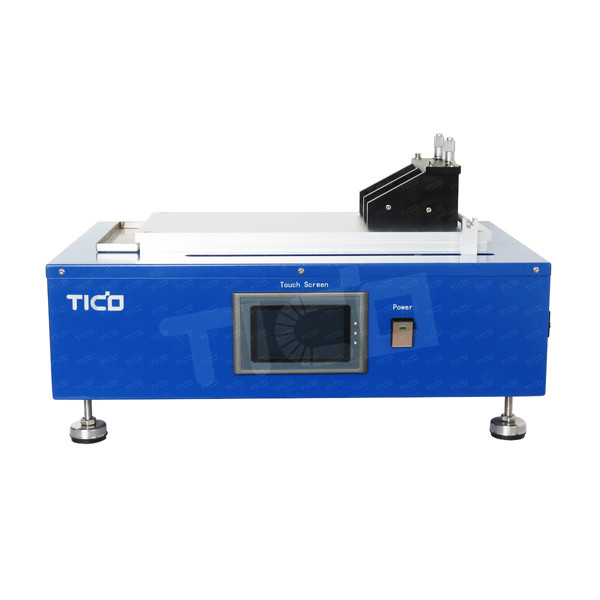

Compact Desktop Film Coating Machine with Adjustable Coating Stroke

Brief Introduction

STC-TM-300 is a compact tape casting machine with vacuum chuck, which widely used in all kinds film coating research, like ceramic films, crystal films, lithium battery electrode coating, etc. The coating stroke length can be set. It is compact size, perfect for laboratory research.

Features

● PLC touch screen control, with easy and convenient setting of each parameter.

● Vacuum chuck enable placement or removal of substrates such as copper and aluminum foils.

● The coating length is 0~300mm adjustable.

● Standard equipped with doctor blade, high coating precision and adjustable coating thickness.

● Small size can save space.

● The metal plate adopts geometric design, and the overall appearance is simple and exquisite.

Technical Parameter

Model	STC-TM-300
Voltage	AC220V±10%, 50Hz
Power	0.5KW
Coating stroke	300mm adjustable ( customized size is available )
Doctor blade	100, 150mm width is optional, fixed width and adjustable width is optional
Coating speed	0~100mm/s adjustable
Doctor blade thickness	0~5mm adjustable
Coating accuracy	±3μm
Vacuum chuck	L415 * W200 * H23mm
Vacuum chuck	Aluminum flat chuck with vacuum for convenient suction of the substrate
Vacuum pump	Internal
Dimension	L550 * W310 * H330mm
Weight	50kg

Warranty

1 year warranty with lifetime support.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
