Product Details:
|
| Product Name: | Battery Slurry Vacuum Mixer | Mixing Container: | 150ml As Standard, Other Size Is Optional |
|---|---|---|---|
| Mixing Container Material: | Stainless Steel | Mixing Paddle: | Single Shaft |
| Pump Position: | Built-in Type | Mixing Speed: | 320rpm |
| High Light: | 150ml Battery Slurry Mixer,Vacuum Battery Slurry Mixer,Coin Cell Mixing Container |
||

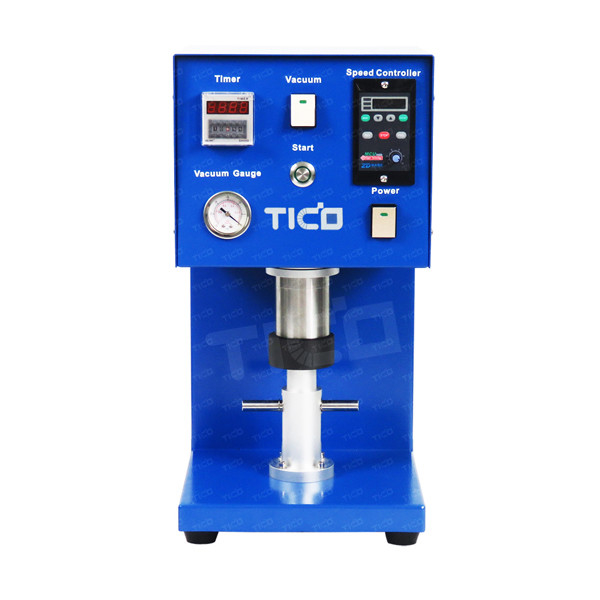

150ml Battery Slurry Vacuum Mixer for Coin Cell
Brief Introduction
STC-EBJ-150 is a desktop vacuum mixer with vacuum mixing and dispersion function. It is widely used for battery slurry mixing, powder and ceramic material mixing under vacuum condition to remove the gas bubble. It is with 150ml mixing container, other volume of mixing container is optional. The built-in vacuum pump included makes it small size and saving space.
Key Features
● Built-in vacuum pump for space saving purpose.
● Volume of mixing container can be optional.
● Mixing time is adjustable.
● Mixing speed is adjustable according to users actual requirement.
● Wide application.
Technical Parameter
|
Model |
STC-EBJ-150 |
|
Working voltage |
AC110V/220V optional |
|
Mixing container |
150ml as standard, other size is optional |
|
Mixing container material |
Stainless steel |
|
Mixing speed |
320rpm |
|
Mixing paddle |
Single shaft |
|
Mixing time |
0~99.99 hrs settable |
|
Vacuum pump |
Built-in type |
|
Vacuum degree |
> -80Kpa |
|
Dimension |
L330 * W310 * H510mm |
|
Weight |
15kg |
Warranty
1 year warranty with lifetime support.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
