Product Details:
|
| Product Name: | Top Heating Film Coating Machine | Heater Position: | Top |
|---|---|---|---|
| Vacuum Pump: | Internal | Max Heating Temperature: | 150℃ |
| Coating Length: | Up To 250mm | Doctor Blade: | 100mm Fixed Width As Standard, Other Size Optional |
| High Light: | Heating Automatic Film Coater,Lab Automatic Film Coater,Battery Automatic Film Coating Machine |
||
Battery Research Film Coater with Top Heater Max. 150℃
Brief Introduction

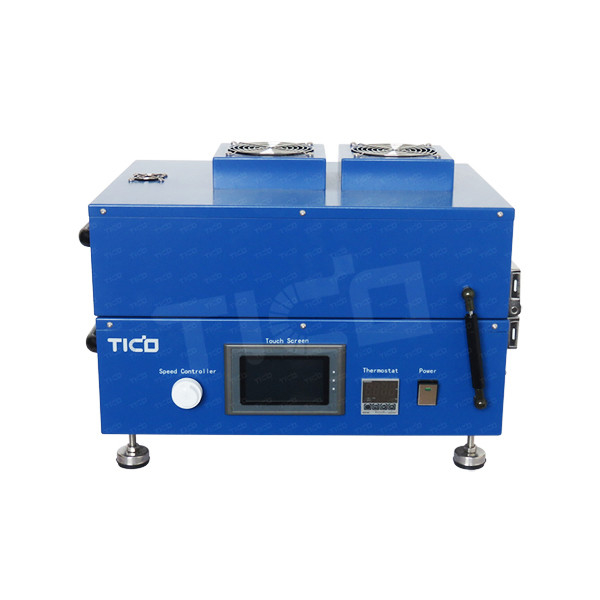

STC-TMH250 is a compact film tape casting machine with vacuum chuck, which is widely used in all kinds film coating research, like ceramic films, crystal films, lithium battery electrode coating, etc. It is designed with top cover heating, the heating temperature up to 150℃ adjustable and digital display.
Features
• Touch screen operation, high automation.
• Vacuum aluminium chuck is designed for quick suction of substrate.
• Built-in vacuum pump is designed.
• Coating stroke length can be set.
• Heating temperature up to 150℃ adjustable, and it's digital display.
Technical Parameters
| Model | STC-TMH250 |
| Working voltage | AC220V |
| Coating length | Max 250mm adjustable |
| Doctor blade | 100mm fixed width as standard, other size is optional |
| Coating thickness | 0.01~3.5mm adjustable |
| Vacuum chuck | L365 x W200 x H30mm |
| Vacuum pump | Built-in type |
| Coating speed | 0~200mm/s adjustable |
| Heating method | Top cover heating |
| Heating temperature | RT~150℃ adjustable, digital display |
| Heating temperature accuracy | ±1℃ |
| Dimension | L500 x W310 x H330mm |
| Weight | 50kg |
Warranty
1 year warranty with lifetime support.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
