Coin Cell Lab Manual Hydraulic Crimper For CR20xx Series

Name: Coin Cell Lab Manual Hydraulic Crimper For CR20xx Series
Brand: Shenzhen TICO Technology Co.,Ltd.
SKU: STC-ASF-20
Price: 2,900.00 USD
Availability: InStock

Brand Name:	TICO
Model Number:	STC-ASF-20
MOQ:	1 Set
Price:	Negotiable
Delivery Time:	7~12 days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Product Name:

Coin Cell Manual Crimping Machine

Standard Crimping Die:

CR20XX Crimping Die

Operation:

Manual

Force:

<6kg

Dimension:

L232xW190xH330mm

Weight:

25kg

Packaging Details:

Standard export wooden packing

Supply Ability:

50 sets per month

Highlight:

Hydraulic Coin Cell Lab Equipment

CR20xx Series Coin Cell Lab Equipment

coin cell crimper

Product Description

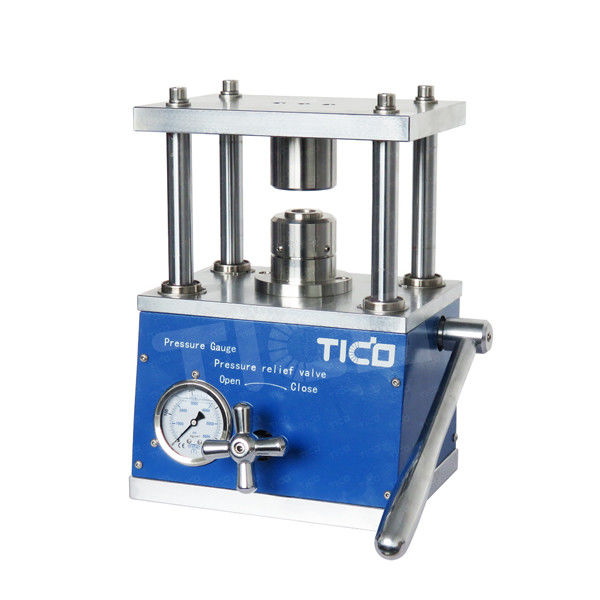

Coin Cell Lab Manual Hydraulic Crimper For CR20xx Series

Brief Introduction

The STC-ASF-20 compact hydraulic crimping machine is used for all types of coin cell cases crimping, such as CR2032, CR2450, etc. CR20xx series crimping die is included as standard, the other crimping die set is optional. Coin cell disassembly die can be optional.

Features

• Tungsten steel crimping die ,anti-corrosion and durable.

• It's desinged with crimping height limitation to avoid damage.

• Embedded pressure gauge designed to observe and accurately control sealing pressure.

• No liquid leakage no vibration during battery sealing.

• Different die set can be optional, such as CR20xx /CR24xx crimping die, disassembly die, etc.

• Small volume, convenient operation, it can operate inside the glove box.

Technical Parameter

Model	STC-ASF-20
Standard crimping die	CR20xx crimping die , other size crimping die is optional
Operation	Manual
Operation force of hand rocker	< 6kg
Die material	Tungsten steel
Structure material	High strength chrome steel and alloy aluminum, and the treatment of electroplating and spraying, to ensure that the surface has strong anti-corrosion properties.
Pressure gauge	Under normal conditions, the pressure gauge value is around 80~100kg/cm2. This machine has been set in this value range before delivery, such as in special circumstances require greater pressure (maximum pressure of 200kg/cm2, about 8 tonnes of pressure) need to consult with the manufacturer and then adjust.
Dimension	L232xW190xH330mm
Weight	25kg

Warranty

1 year warranty with lifetime support.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
