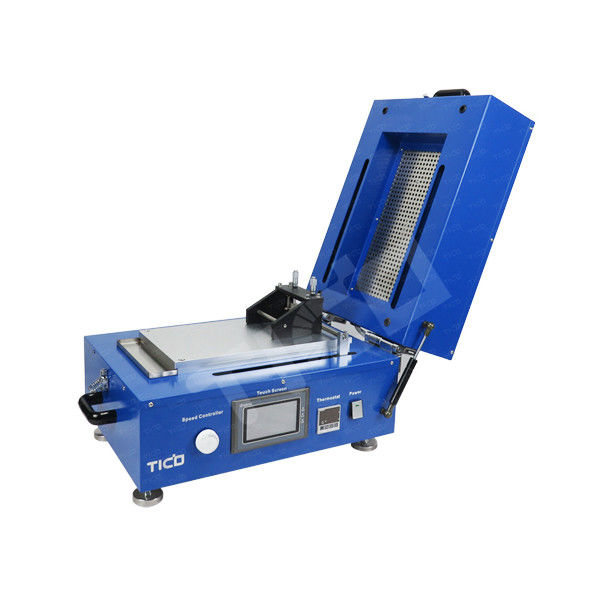

300mm Adjustable Vacuum Coating Machine with Top Cover Heater

Name: 300mm Adjustable Vacuum Coating Machine with Top Cover Heater
Brand: Shenzhen TICO Technology Co.,Ltd.
SKU: STC-TMH-T300
Price: 4,000.00 USD
Availability: InStock

Brand Name:	TICO
Model Number:	STC-TMH-T300
MOQ:	1 Set
Price:	Negotiable
Delivery Time:	10-15 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Product Name:

Vacuum Film Coating Machine

Feature:

Top Heating

Vacuum Pump:

Built-in

Max Heating Temperature:

130℃

Coating Length:

Up To 300mm

Doctor Blade:

100mm Fixed Width As Standard, Other Size Optional

Packaging Details:

Wood Packing

Supply Ability:

20 sets per month

Highlight:

Top Heating Automatic Film Coating Machine

250mm Automatic Film Coating Machine

adjustable Automatic Film Coater

Product Description

300mm Adjustable Vacuum Coating Machine with Top Cover Heater

Brief Introduction

STC-TMH-T300 is a compact film tape casting machine with vacuum chuck, which is widely used in all kinds of film coating research, like ceramic films, crystal films, lithium battery electrode coating, etc. It is designed with top cover heating, the heating temperature up to 130℃ adjustable and digital display.

Key Features

• Touch screen operation, high automation.

• Vacuum aluminium chuck is designed for quick suction of substrate.

• Built-in vacuum pump is designed.

• Coating stroke length can be set.

• Heating temperature up to 130℃ adjustable, and it's digital display.

Technical Parameters

Model	STC-TMH-T300
Voltage	AC220V±10%, 50Hz
Coating stroke	About 300mm adjustable
Doctor blade	100, 150mm width is optional, fixed width and adjustable width is optional
Coating speed	0~120mm/s adjustable (such as lithium iron phosphate slurry)
Coating thickness range	0~6mm adjustable
Coating accuracy	±3μm (1μm micrometer is optional)
Heating and drying system	RT~130℃, digital temperature controller, accuracy±2℃
Vacuum chuck size	L415 * W200 * H23mm
Vacuum chuck	Aluminum flat chuck with vacuum
Coating method	Flat plate coating
Coating drive	Motor drive
Oil-free vacuum pump	Built-in type
Dimension	L560 * W420 * H370mm
Weight	50kg

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R& D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
