800mm Width Pouch Cell Lab Equipment Vacuum Film Coating Machine AC110V 220V

I'm Online Chat Now

800mm Width Pouch Cell Lab Equipment Vacuum Film Coating Machine AC110V 220V

800mm Width Pouch Cell Lab Equipment Vacuum Film Coating Machine AC110V 220V
800mm Width Pouch Cell Lab Equipment Vacuum Film Coating Machine AC110V 220V

Large Image :  800mm Width Pouch Cell Lab Equipment Vacuum Film Coating Machine AC110V 220V

Product Details:
Place of Origin: Shenzhen, China
Brand Name: TICO
Model Number: STC-TMH800
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Packing
Delivery Time: 20~25 working days
Payment Terms: T/T
Supply Ability: 30 sets per month

800mm Width Pouch Cell Lab Equipment Vacuum Film Coating Machine AC110V 220V

Description
Power Supply: AC110V/220V Optional Upon Request Coating Length: Max 800mm Adjustable, Cab Be Customized
Coating Thickness: 0.01~3.5mm Adjustable Heating Temperature: Up To 150℃ Adjustable
Coating Speed: 0~200mm/s Adjustable Dimension: L900 * W310 * H330mm
High Light:

800mm Width Pouch Cell Lab Equipment Vacuum

,

AC110V Pouch Cell Lab Equipment

,

220V Film Coating Machine

800mm Vacuum Film Coating Machine for Pouch Cell Research



Brife Introduction

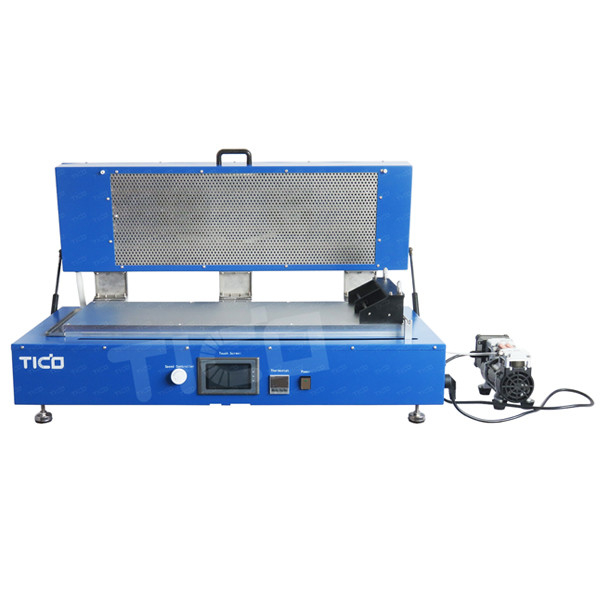

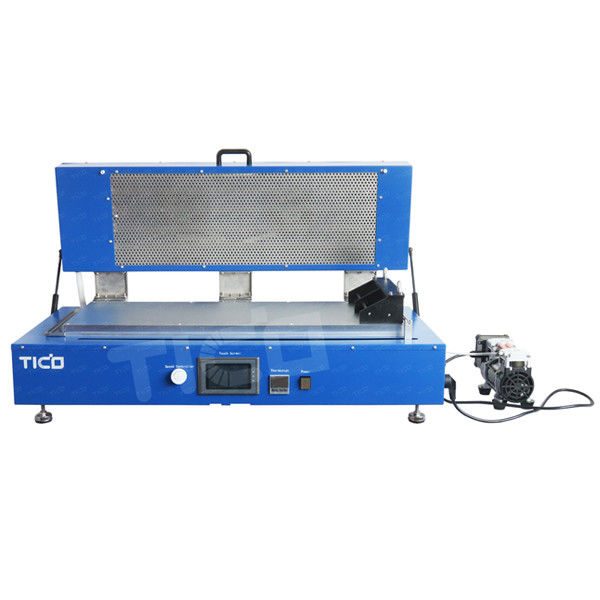

STC-TM800 is a large desktop film tape casting machine with vacuum chuck, which is widely used in all kinds film coating research, like ceramic films, crystal films, lithium battery electrode coating, etc. It is designed with top cover heating, the heating temperature is up to 150℃ adjustable,  and it is digital display. The coating speed, coating stroke length, coating thickness is adjustable. 800mm coating length makes it perfect for lithium-ion battery electrode coating.



Features



● Touch screen operation, high automation.

● Vacuum aluminium chuck is designed for quick suction of substrate.

● Coating stroke length is adjustable.

● Coating speed can be set.

● 800mm coating length, perfect for lithium-ion bsttery electrode coating.



Technical Parameter



 Model  STC-TMH800
 Power supply  AC110V/220V optional upon request
 Max coating stroke length  800mm adjustable ( customized size is available )
 Doctor blade  150mm fixed with & adjustable width optional
 Coating thickness range  0.01~3.5mm adjustable
 Heating temperature  Up to 150℃ adjustable, digital display
 Vacuum chuck  L865 * W200 * H30mm
 Vacuum pump  External connected
 Coating speed  0~200mm/s adjustable
 Dimension  L900 * W310 * H330mm
 Weight  100kg



Warranty



1 year warranty with lifetime support. Man-made damage is not covered.



FAQ



1. Are you a manufacturer?



A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.



2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.



3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.



4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
