Product Details:
|
| Model: | STC-BCK-SM200 | Punching Die Size: | Max L200 * W150mm, Customizable |
|---|---|---|---|
| Punching Depth: | ≤ 6mm Adjustable, Can Be Customized | Aluminum-laminated Films Thickness: | 0.1~0.2mm |
| Dimension: | L460 * W320 * H925mm | Weight: | 180kg |
| High Light: | Semi Auto Battery Punching Machine,100W Battery Punching Machine,Pouch Cell Electrode Punching Machine |
||

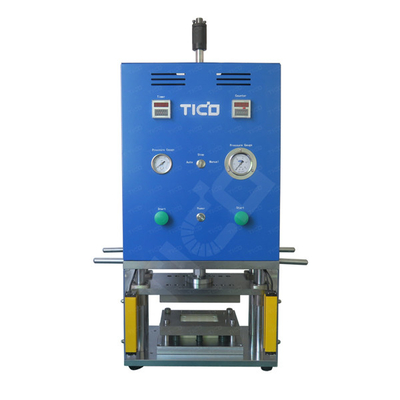

200mm Length Lab Semi-auto Polymer Pouch Cell Case Forming Machine for Battery Research
Brief Introduction
STC-BCK-SM200 is a necessary equipment for pouch cell preparation. It is a semi-auto pouch cell aluminum-laminated films cup forming machine, the punching thickness is adjustable. The punched case without crow's feet and corner collapse. IR sensor, dual start buttons and protection cover are included for safety operation.
Features
● Punching depth can be adjusted.
● Different size of punching die can be optional and easy to replace.
● The punched case without crow's feet and corner collapse.
● The punching die can only go down only when pressing the 2 buttons at the same time to avoid hurting hands.
● IR sensor is included for safty protection.
● Protection cover is included.
● It's designed with counter for calculating the punching numbers.
Technical Parameters
|
Model |
STC-BCK-SM200 |
|
Working voltage |
AC110V /220V optional |
|
Punching die size |
Max L200 * W150mm, customized size is available |
|
Punching depth |
≤ 6mm adjustable, customized depth is available |
|
Aluminum-laminated films thickness |
0.1~0.2mm |
|
Power |
100W |
|
Air pressure |
0.5~0.7Mpa |
|
Material feeding |
Manually |
|
Dimension |
L460 * W320 * H925mm |
|
Weight |
180kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
