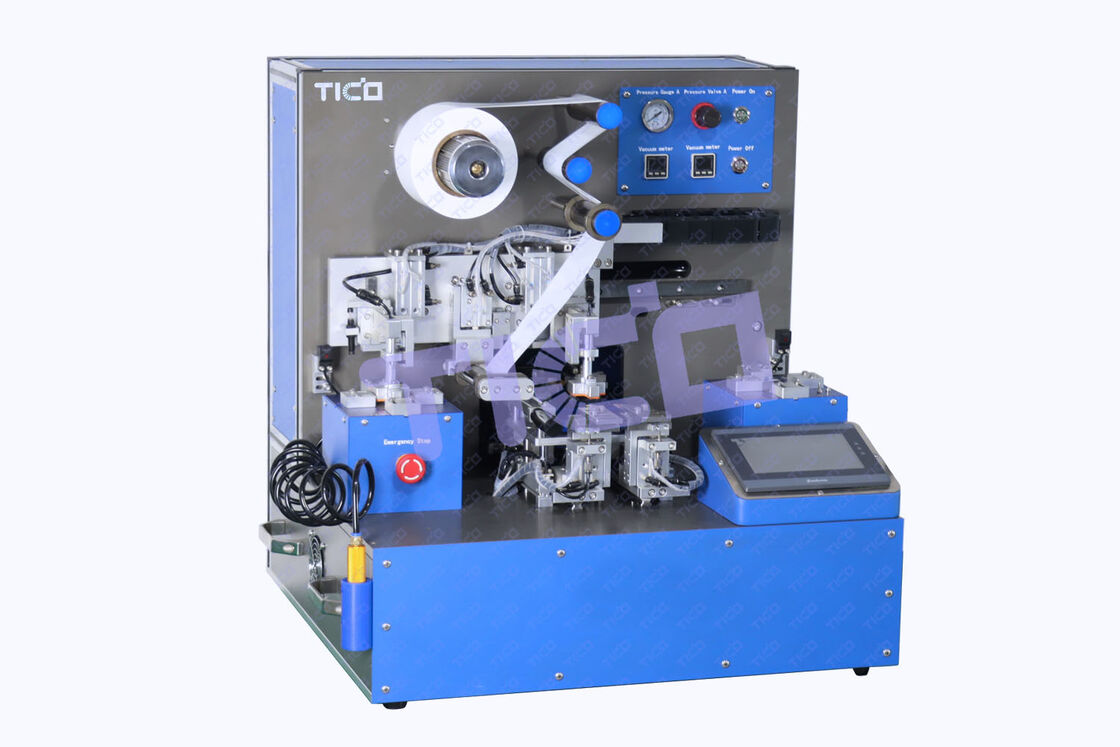

New Pouch Cell Semi-auto Stacking Machine of Using in Glovebox

New Pouch Cell Semi-auto Stacking Machine of Using in Glovebox

Brief Introduction

This product is mainly used for Z-shaped stacking anode, cathode electrode and separator to make battery core. Manual loading electrode, subsequent electrode position correction and stacking process are done automatically, with high stacking efficiency and accuracy. Stacking different size battery cores can be realized by adjusting the clamps, which is very suitable for research and sample production of stacked lithium-ion battery. This equipment is designed with desktop structure, which can be placed in the glovebox. This equipment adopts single cantilever structure design, with automatic constant tension control of the roll material separator.

Key Features

● Can be used in the glove box.

● Roll material separator automatic servo constant tension control, Z-shaped automatic stacking.

● The number of stacking electrode can be automatically controlled according to pre-setting.

● Compatible design, stacked cell size change can be realized by adjusting the positioning clamps, wide range of adjustment to ensure the accuracy of stacking.

● Manually loading electrode, automatic position, mechanical arm picking up and stacking electrode automatically.

● Left and right movement is controlled by pulse motor, precise and convenient when fine-tuning.

● PLC control, HMI operation, easy to use and maintain.

Technical Parameters

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
