Product Details:
|
| Product Name: | Ultrasonic Spot Welding Machine | Working Voltage: | AC110V/220V Optional |
|---|---|---|---|
| Output Power: | 1000W | Generator Frequency: | 40KHz |
| Welding Time: | 0.01~2S | Welding Pressure: | 0.5~0.7Mpa |
| Welding Layers: | 20 Layers For Reference, Depending On Different Material | Welding Size: | 4x4mm, Customizable |
| Dimension: | Controller: L520 * W410 * H180mm Welder : L400 * W240 * H325mm | Weight: | 80Kg |

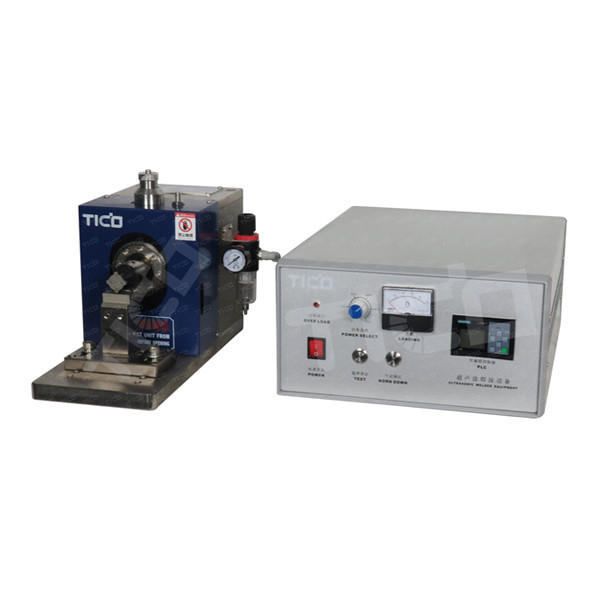

Ultrasonic Spot Welding Machine for Pouch Cell Lab Research
Brief Introduction
STC-BCH-1000 ultrasonic metal spot welding machine is designed for battery lab research. It has the advantages of strong welding spot, low internal resistance of the welding spot, and good appearance without oxidation traces. It can achieve various effects by choosing relevant frequencies and powers according to different requirement.
Features
● The conductibility after welding is good and the resistivity is quite low, almost 0.
● The welding can be perfectly conducted even if contaminant or oxide exists on the metal surface. Ultrasonic have the function of cleansing.
● Pretreatment is not required for the workpiece. The fusion can be completed without solder and soldering paste, quite economic and convenient.
● The welding time is quite short, fusion can be completed within 0.01~2 seconds .
● The welding head is made of wear-resistant material and with good durability.
Technical Parameters
|
Model |
STC-BCH-1000 |
|
Working voltage |
AC110V/220V optional |
|
Output power |
1000W |
|
Generator frequency |
40KHz |
|
Welding time |
0.01~2S |
|
Welding pressure |
0.5~0.7Mpa |
|
Welding layers |
20 layers for reference, depending on different material |
|
Welding size |
4x4mm, customized size is available |
|
Dimension |
Controller: L520 * W410 * H180mm Welder: L400 * W240 * H325mm |
|
Weight |
80kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
