Product Details:
|
| Product Name: | Gas Drive Electrode Die Cutter | Driven Mode: | Gas Drive |
|---|---|---|---|
| Cutting Die Size: | Max. L85 * W65mm, Customizable | Air Pressure: | Max 1T, Suggest 0.7Mpa For Cuttingelectrode |
| Material Feeding: | Manual | Dimension: | L350 * W4230 * H300mm |
| Weight: | 40kg | ||
| High Light: | Compact Pouch Cell Lab Equipment,Gas Driven Pouch Cell Lab Equipment,Manual Electrode Die Cutter |
||

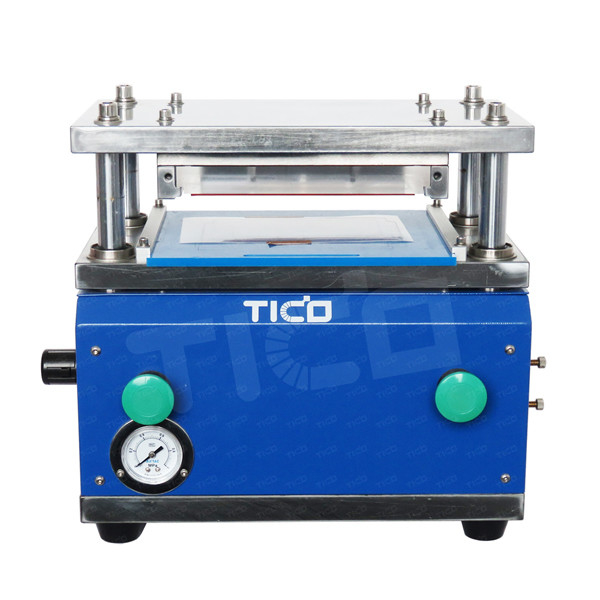

Compact Gas Driven Electrode Die Cutter for Pouch Cell Research
Brief Introduction
STC-QMQ85 is a gas driven electrode die cutter for pouch cell cathode & anode cutting for pouch cell preparation. It is a necessary equipment for pouch cell research with very high cutting accuracy. Gas driven mode, electricity is not required. Compact size can be put inside of glove box.
Features
● Different size of cutting die can be optional and easy to replace.
● The cutting no burr, no coated material drop.
● 2 Start buttons, the die can only go down only when pressing the 2 buttons at the time. The unique design to avoid hands get injured.
● Compact size can be put inside glove box.
● Long lifetime for the cutting die, >30000 times.
Technical Parameters
|
Model |
STC-QMQ85 |
|
Driven mode |
Gas Driven |
|
Cutting die size |
maximum L85 * W65mm, customized size is available |
|
Cuting accuracy |
±0.1mm |
|
Air pressure |
Max 1T, 0.7Mpa is suggested to cut battery electrode. If it is used inside glove box, the gas same as glove box working gas. |
|
Material feeding |
Manual |
|
Dimension |
L350 * W4230 * H300mm |
|
Weight |
40kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
