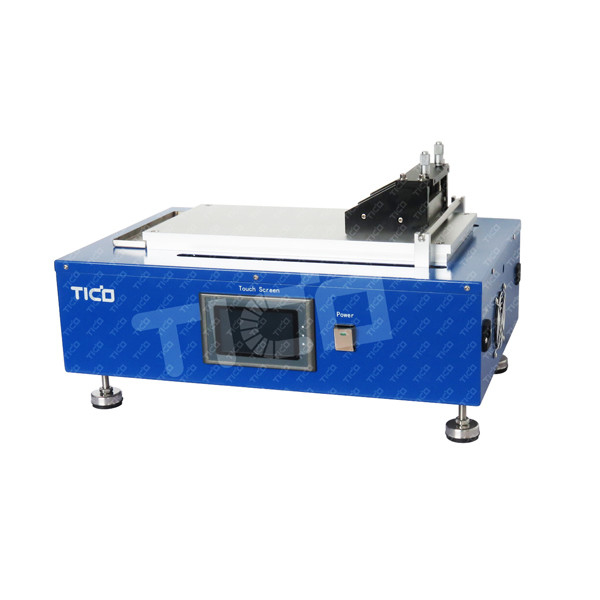

Vacuum Film Coating Machine with 300mm Stroke Adjustable

Brand Name:	TICO
Model Number:	STC-TM-300
MOQ:	1 Set
Price:	Negotiable
Delivery Time:	15~ 20 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Product Name:

Battery Electrode Film Coating Machine

Coating Length:

Max. 300mm Adjustable , Customizable

Doctor Blade:

100, 150mm Width Is Optional, Fixed Width And Adjustable Width Is Optional

Coating Speed:

0~100mm/s Adjustable

Dimension:

L550 * W310 * H330mm

Weight:

50kg

Packaging Details:

Wood Packing

Supply Ability:

20 sets per month

Highlight:

40kg Lab Film Coater Machine

300mm Lab Film Coater

Adjustable Film Coating Equipment

Product Description

Vacuum Film Coating Machine with 300mm Stroke Adjustable

Brief Introduction

The product is an advanced equipment designed for coatings various substrates. It is widely used in all kinds of material film coating, like ceramic films, crystal films, battery material film, and special nano films etc. The device boasts a high-precision control system that guarantees uniform and accurate coating, making it an indispensable tool for both research and battery manufacturing.

Key Features

● PLC touch screen control, with easy and convenient setting of each parameter.

● Vacuum chuck enable placement or removal of substrates such as copper and aluminum foils.

● The coating length is 0~300mm adjustable.

● Standard equipped with doctor blade, high coating precision and adjustable coating thickness.

● Small size can save space.

● The metal plate adopts geometric design, and the overall appearance is simple and exquisite.

Technical Parameter

Model	STC-TM-300
Voltage	AC220V±10%, 50Hz
Power	0.5KW
Coating stroke	300mm adjustable, customized size is available
Doctor blade	100, 150mm width is optional, fixed width and adjustable width is optional
Coating speed	0~100mm/s adjustable
Coating thickness range	0~5mm adjustable
Coating accuracy	±3μm
Vacuum chuck size	L415 * W200 * H23mm
Vacuum chuck	Aluminum flat chuck with vacuum for convenient suction of the substrate
Vacuum pump	Built-in type
Dimension	L550 * W310 * H330mm
Weight	50kg

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
