| Brand Name: | TICO |
| Model Number: | STC-BHQ-300 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Delivery Time: | 15~ 20 working days |
| Payment Terms: | T/T |

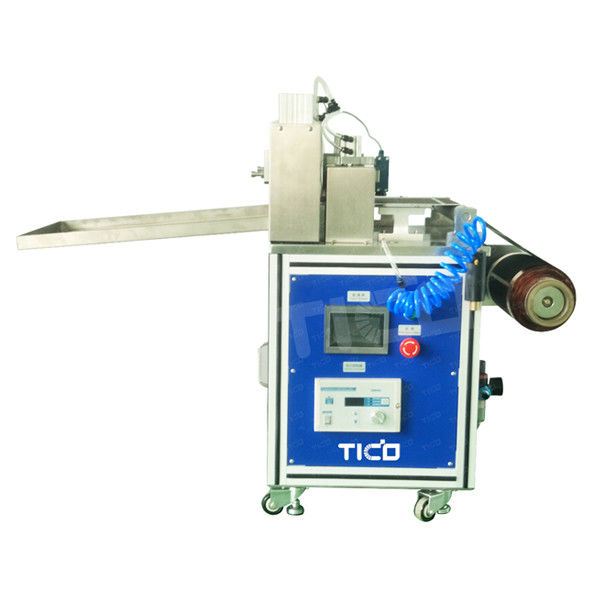

Automatic Battery Electrode Roll to Sheet Cutting Equipment
Brief Introduction
STC-BHQ-300 automatic cutting machine is used for cutting roll battery electrode to the sheets. The cutting length, numbers, speed can be set. It is designed with automatic unwinding device, tension control.
Features
● Cutting length, qty and speed can be set.
● Automatic unwinding, tension control.
● Continuous cutting with 2 modes, setting length and cursor tracking.
● PLC touch screen control.
Technical Parameters
|
Model |
STC-BHQ-300 |
|
Power supply |
AC110V/220V optional |
|
Power |
1.2KW |
|
Unwinding diameter |
250mm |
|
Accepted electrode width |
10~300mm |
|
Cutting length |
1~9999mm |
|
Cutting accuracy |
±0.3mm |
|
Setting length cutting speed |
5~250mm/s |
|
Cursor tracking cutting speed |
5~150mm/s |
|
Burr |
≤25μm |
|
Compressed air |
0.5~0.7Mpa |
|
Dimension |
L700 * W700 * H1000mm material guide plate length 800mm |
|
Weight |
240kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
|
|
