Product Details:
|
| Product Name: | Hot Flat Pressing Machin | Working Voltage: | AC110V / 220V Optional |
|---|---|---|---|
| Pressing Die Size: | L200 * W200mm | Heating Temperature: | Room Temperature ~250℃ Adjustable |
| Heating Power: | 1KW | Pressure: | Max 1T |
| Compressed Air: | 0.5~0.7Mpa | Dimension: | L320 * W320 * H430mm |
| Weight: | 70kg | ||
| High Light: | 1KW Hot Flat Pressing Machine,200 * 200mm Flat Pressing Machine,Pouch Battery Press Machine |
||

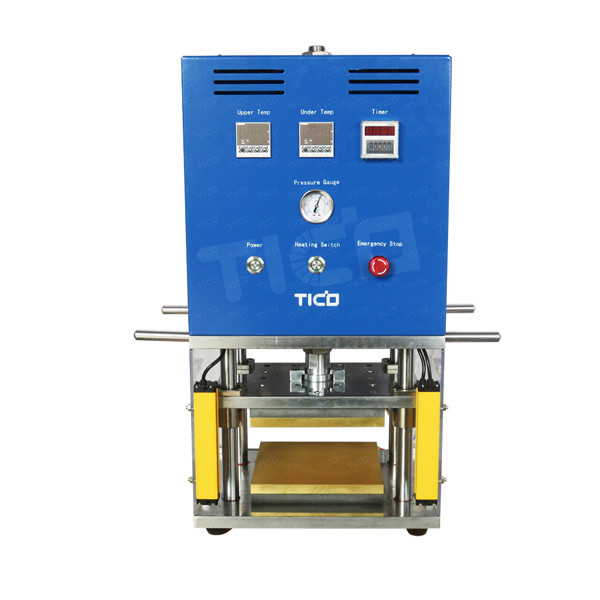

Hot Flat Pressing Machine for Pouch Battery Research
Brief Introduction
STC-RPY200 hot flat pressing machine is used for pouch cell cores hot flat pressing after stacking & winding to makes it easy to put into aluminium-laminated case and pouch cell formation. The heating pressing die size is L200 x W200mm. The upper and lower pressing plate temperature can be controlled independently and digital display by thermometer.
Features
● Upper and lower pressing die temperature can be controlled independently.
● Heating temperature adjustable from room temperature ~250℃ and digital display.
● Pressing pressure can be adjusted.
● Heating press time can be set.
● The heating pressing die is made from copper with good heat conduction.
● IR sensor and protection cover included for safety protection.
Technical Parameters
|
Model |
STC-RPY200 |
|
Working voltage |
AC110V / 220V optional |
|
Pressing die size |
L200 * W200mm |
|
Heating temperature |
Room temperature ~250℃ adjustable |
|
Temperature accuracy |
± 2℃ |
|
Heating power |
1KW |
|
Pressure |
Max 1T |
|
Compressed air |
0.5~0.7Mpa |
|
Dimension |
L320 * W320 * H430mm |
|
Weight |
70kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
