Gas Driven 18650 Cylindrical Cell Lab Equipment Crimping Machine 1Mpa Maximum

I'm Online Chat Now

Gas Driven 18650 Cylindrical Cell Lab Equipment Crimping Machine 1Mpa Maximum

Gas Driven 18650 Cylindrical Cell Lab Equipment Crimping Machine 1Mpa Maximum
Gas Driven 18650 Cylindrical Cell Lab Equipment Crimping Machine 1Mpa Maximum

Large Image :  Gas Driven 18650 Cylindrical Cell Lab Equipment Crimping Machine 1Mpa Maximum

Product Details:
Place of Origin: Shenzhen, China
Brand Name: TICO
Model Number: STC-YQF65
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wood Packing
Delivery Time: 20~25 working days
Payment Terms: T/T
Supply Ability: 10 sets per month

Gas Driven 18650 Cylindrical Cell Lab Equipment Crimping Machine 1Mpa Maximum

Description
Product Name: Gas Driven Cylindrical Cell Crimping Machine Standard Die: 18650 Crimping Die Included As Standard. Other Crimping Die Is Optional
Driven Mode: Gas Driven Material: High Strengthen Chorme Steel
Dimension: L350 * W234 * H420mm Weight: 32kg
High Light:

Gas Driven Cylindrical Cell Lab Equipment

,

1Mpa Cylindrical Cell Lab Equipment

,

18650 Cylindrical Cell Crimping Machine

Gas Driven Cylindrical Cell Crimping Machine for Battery Research



Brief Introduction

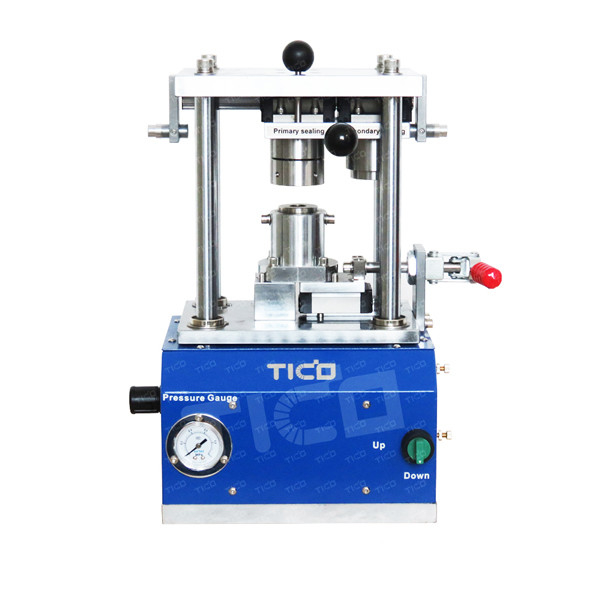

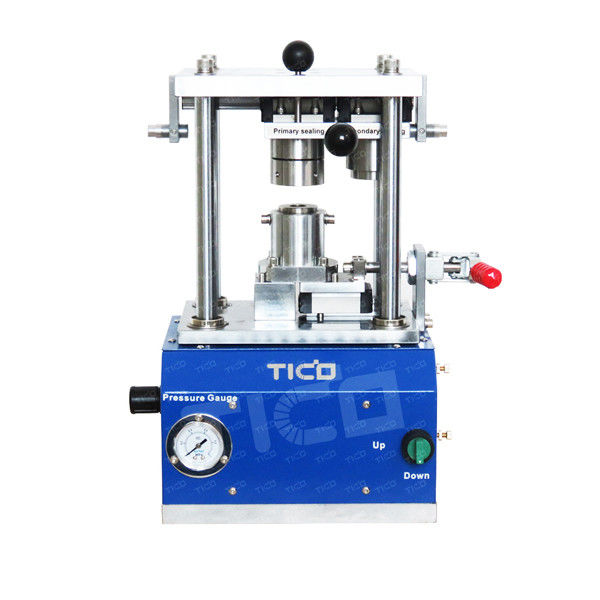

The STC-YQF65 is a compact gas driven crimping machine for various of cylindrical cell crimping, such as 18650, 26650, AA, AAA, etc. It is perfect to use it into glove box without leakage.



Features



● Primary & secondary crimping die included, 2 steps of crimping makes it perfect sealing.

● Compact body allow it to put into glove box through big antechamber.

● Pure gas controlled, is is perfect to use it inside of glove box, no leakage

● Different crimping size die is optional.



Technical Parameters



 Model  STC-YQF65
 Standard die  18650 crimping die included as standard. Other crimping die is optional
 Driven mode  Gas driven
 Air source  Argon, nitrogen, or compressed air. It is not recommended to use compressed air when crimper used inside of glovebox.
 Exhause design  Exhaust port is specially designed, which can be connected with KF40
 Crimping pressure  Manual value control, maximum 1Mpa, 0.7MPa is recommend
 Main structure material  High strengthen chorme steel with environmental protection plating and painting treatment
 Dimension  L350 * W234 * H420mm
 Weight  32kg



Warranty



1 year warranty with lifetime support. Man-made damage is not covered.
