Product Details:
|
| Prodcut Name: | Cylindrical Cell Electrode Slitting Machine | Working Voltage: | AC110V/220V Optional |
|---|---|---|---|
| Power: | 200W | Slitting Width: | Standard Is Combined Die For 56mm & 58mm |
| Slitting Thickness: | 80~300μm Battery Electrode | Slitting Speed: | Max 4m/min, Adjustable |
| Dimension: | L850 * W920 * H400mm | Weight: | 100kg |
| Highlight: | Desktop Electrode Slitting Machine,Semi Auto Electrode Slitting Machine,200W Cylindrical Cell Slitting Machine |
||

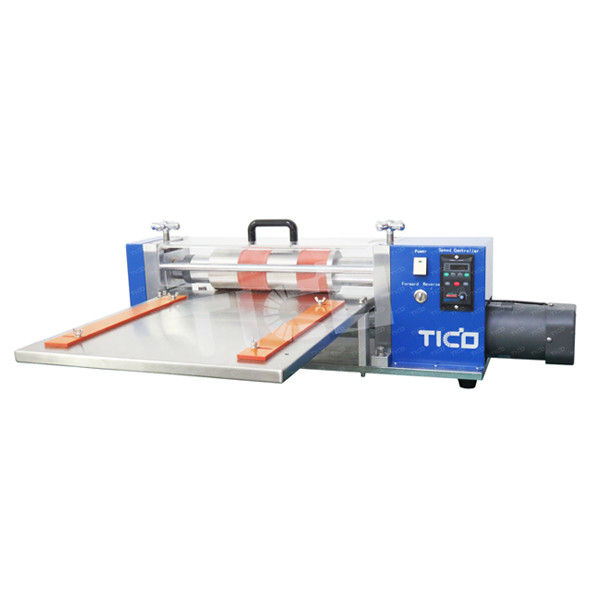

Desktop Semi-auto Cylindrical Cell Electrode Slitting Machine
Brief Introduction
STC-CFT-D300 is a semi-auto slitting machine for cylindrical cell electrode for battery research. The slitting width can be made according to requirement. It is desktop, simple operation.
Features
● Slitting speed is adjustable.
● Protection cover is designed for safety operation.
● The die total width 300mm, slitting width can be made according to requirement.
● Slitting no burr, no powder drop.
● It is desktop, saving space in lab.
Technical Parameters
| Model | STC-CFT-D300 |
| Working voltage | AC110V/220V optional |
| Power | 200W |
| Slitting width |
Standard is combined die for 56mm & 58mm Customized size available from 20~300mm |
| Slitting thickness | 80~300μm battery electrode |
| Slitting burr | ≤ 25μm |
| Slitting speed | Max 4m/min, adjustable |
| Dimension | L850 * W920 * H400mm |
| Weight | 100kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
