Product Details:
|
| Product Name: | Battery Electrode Rolling Press Machine | Application: | Battery Research Electrode Pressing |
|---|---|---|---|
| Feature: | Digital Display, Pressing Speed Adjustable | Size: | L390 * W250 * W356mm |
| Weight: | 60kg | Color: | Blue |
| High Light: | Adjustable electrode calendering machine,100mm electrode calendering machine,220V Battery calendering machine |
||

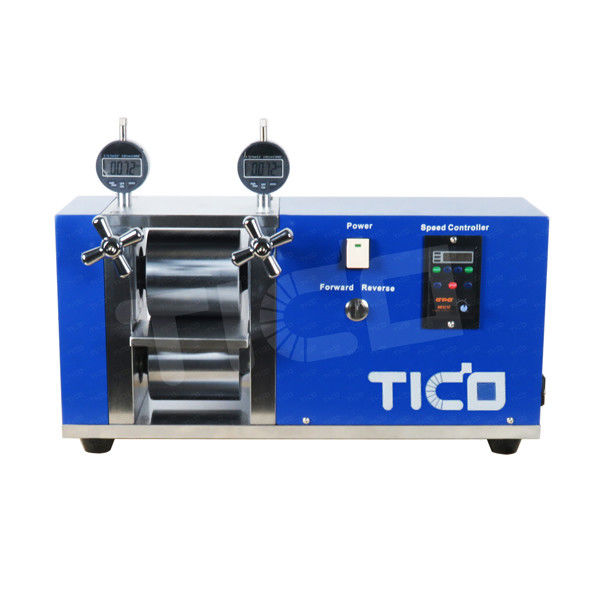

Battery Electrode Calendaring Machine with 100mm Roller
Brief Introduction
STC-DDG-100 is used for battery electrode rolling press for battery research after coating and drying. It is with digital dial indicator, easy to operate. The pressing speed is digital display.
Features
● Pressing thickness is adjustable and digital display.
● Rolling pressing speed is digital display.
● Vertical rollers installation design for convenient feeding and pressing for strip material.
● Forward & backward are available.
● Electric pressing makes uniform pressing force.
Technical Parameter
| Model | STC-DDG-100 |
| Working voltage | AC110V/220V optional |
| Roller size | φ100xW100mm. 150mm /200mm /250mm width roller optional |
| Roller hardness | >HRC62 |
| Pressing thickness | 0~2mm adjustable |
| Digital Micrometer | resolution 0.01 and 0.001mm optional |
| Pressing speed | 0~10mm/s adjustable, digital display |
| Power | 120W |
| Dimension | L390 * W250 * W356mm |
| Weight | 60kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
