100mm Adjustable Width Doctor Blade

Brand Name:	TICO
Model Number:	STC-TMQ-100A
MOQ:	1 Set
Price:	Negotiable
Delivery Time:	5~8 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Product Name:

Film Applicator

Coating Width:

100mm Adjustable

Coating Thickness:

0~3500μm

Adjust Scale:

10μm

Material:

Corrosion Resistance Material

Dimension:

L120 X W87 X H110mm

Packaging Details:

Wood Packing

Supply Ability:

200 sets per month

Highlight:

100mm Wet Film Applicator

10μm Wet Film Applicator

Adjustable Battery Film Applicator

Product Description

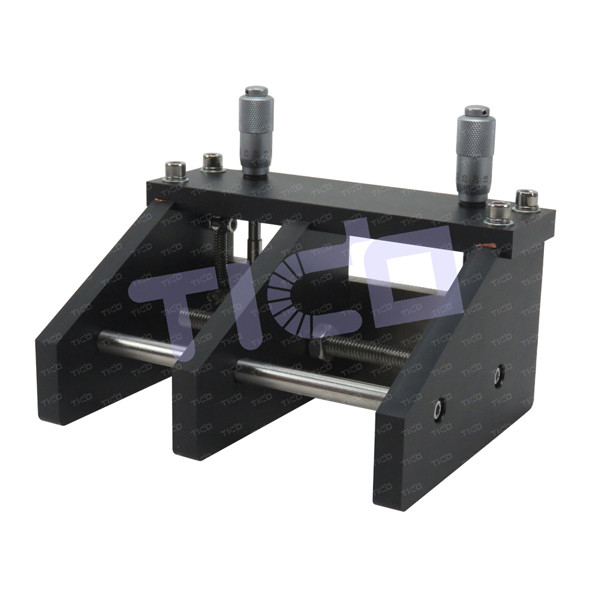

100mm Adjustable Width Doctor Blade

Brief Introduction

It is a compact device for various of coating research for lab, especially for battery electrode coating, ceramic coating, nano film, etc. The coating width can be adjusted.

Key Features

● Coating thickness is adjustable between 0~3500μm.

● 100mm width, the other width is optional.

● Double micrometer to control the coating thickness, high coating accuracy.

● Stainless steel corrosion resistance material, longer lifetime.

● Black color, easy to clean.

Technical Parameters

Model	STC-TMQ-100A
Coating width	100mm
Coating thickness adjustable range	0~3500μm
Adjust scale	10μm
Material	Corrosion resistance material
Dimension	L120 * W87 * H110mm

Warranty

1 year's warranty with lifetime support.

FAQ

1. Are you a manufacturer ?

A: Yes, our factory is located in Shenzhen, China.

We have more than 10 years experience for manufacturing battery lab research equipment. We owns a professional R&D department.

2. Do you accept customized product ?

A : Yes. Most of our products can be customzied to meet different requirements.

3. Will you provide test video before dispatch ?

A : Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service ?

A : Yes, we can dispatch professional engineer for on-site installation service.
