Transfer Roll to Roll Film Coating Machine for Battery Electrode Making

Name: Transfer Roll to Roll Film Coating Machine for Battery Electrode Making
Brand: Shenzhen TICO Technology Co.,Ltd.
SKU: STC-TMZT-300
Price: 4,000.00 USD
Availability: InStock

Brand Name:	TICO
Model Number:	STC-TMZT-300
MOQ:	1 Set
Price:	Negotiable
Delivery Time:	30~35 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Product Name:

Roll To Roll Film Coating Machine

Coating Method:

3 Rollers Transfer Coating

Coating Mode:

Continuous & Intermittent Coating

Roller Width:

330mm, 280mm Effective

Substrate Thickness:

Aluminium Foil : 8~30μmCopper Foil : 8~30μm

Coating Speed:

0~0.5m/min,depending On The Heating

Dimension:

L1700*W1000*H1100mm

Weight:

800Kg

Packaging Details:

Wood Packing

Supply Ability:

5 sets per month

Product Description

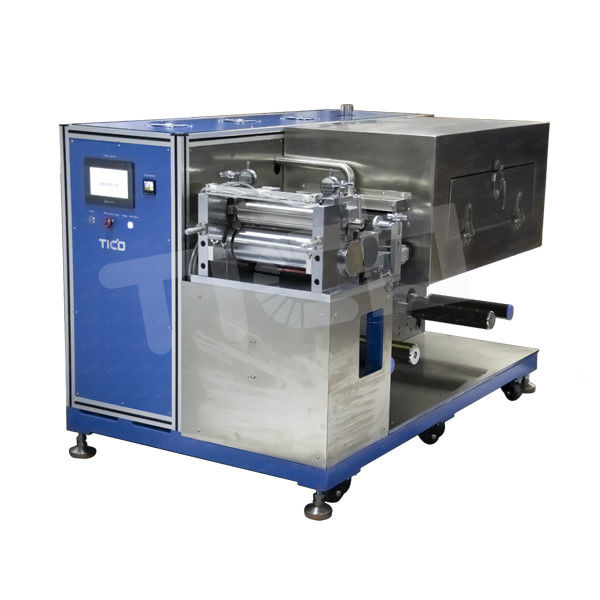

Transfer Roll to Roll Film Coating Machine for Battery Electrode Making

Brief Introduction

STC-TMZT-300 coating machine is a three roller transfer coating equipment, which can be used continuous coating and intermittent coating, it is convenient to apply for surface coating for various substrates. Especially used in the lithium-ion battery industry, the equipment is designed in accordance with the convenience of the researchers and meets the requirements of coating precision and consistency, it has excellent drying effect. It is the ideal choice for lithium ion battery, super capacitor, nickel battery and other two battery research and development and small test.

Key Features

● Continuous and intermittent coating can be changed freely.

● Tension control, it’s equipped with correction device.

● Lower & upper blowing heating oven with excellent drying.

● Comma coating blade metering, with precision adjustment mechanism to obtain high coating accuracy.

● Gap tracking system for double side coating.

● PLC control, high automation.

● Solvent recovery processing device is optional. Please click other link for NMP processing system.

Technical Parameters

Power Supply Information

Model	STC-TMZT-300
Voltage	AC380V, 50HZ, three-phase five-wire system
Power	10KW

Equipment

No.	Item	Technical Parameters	Notes
1	Application	Vanadium sodium, lithium iron phosphate, lithium cobalt oxide, lithium manganate, graphite, silicon carbon, and other system battery anode & cathode electrode
2	Coating method	Continuous, intermittent coating	Transfer coating machine
3	Mechanical speed	Max 1m/min
4	Coating speed	0~0.5m/min	Depends on drying conditions
5	Gap coating length	Coating length: 10~5000mm, Bare coating length: 10~500mm
6	Double sided gap alignment	Photoelectric detection of gaps enables automatic tracking of front side head and tail gaps to align with back side head and tail gaps.
7	Substrate thickness	Aluminum foil (Al): 8~30μm Copper foil (Cu): 8~30μm
8	Roller width	330mm
9	Coating width	Within 280mm
10	Coating roller, rubber roller	φ120mm
11	Doctor blade roller	φ80mm
12	Coating accuracy	±3μm
13	Coating surface density	≦±1.5%, (including substrate, excluding edge abnormal areas, refer to product evaluation for sampling and measurement criteria)
14	Slurry viscosity applicable	2000~12000 (mPa·s)
15	Single side coating thickness after drying	20-200μm
16	Solvent characteristics	Oily solvent NMP(s.g=1.033,b.p=204°C)
16	Solvent characteristics	Waterborne solvent H₂O/NMP (s.g=1.000,b.p=100℃)
17	Solid content range	20~85%
18	Coating size accuracy(mm)	L≤ ±1,W≤ ±0.5	L: Length direction W: Width direction
19	Double side alignment accuracy (mm)	L≤ ±1,W≤ ±0.5	L: Length direction W: Width direction
20	Corrective error	±0.3mm

Dimension & Weight

Dimension	L1700 * W1000 * H1100mm
G. W	800kg
Moving methods	Wheels and foot will be installed.

Warranty

1 year's warranty with lifetime support .

FAQ

1. Are you a manufacturer ?

A: Yes, our factory is located in Shenzhen, China.

We have more than 10 years experience for manufacturing battery lab research equipment. We owns a professional R&D department.

2. Do you accept customized product ?

A : Yes, Most of our products can be customzied to meet different requirements.

3. Will you provide test video before dispatch ?

A : Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service ?

A : Yes, we can dispatch professional engineer for on-site installation service.
