Product Details:
|
| Product Name: | Coin Cell Crimping Machine | Standard Crimping Die: | CR20XX Crimping Die |
|---|---|---|---|
| Operation: | Manual | Force: | < 5.5kg |
| Dimension: | L232xW165xH320mm | Weight: | 25kg |
| High Light: | TICO Coin Cell Lab Equipment,5.5kg Coin Cell Lab Equipment,CR20XX Coin Cell Crimping Machine |
||

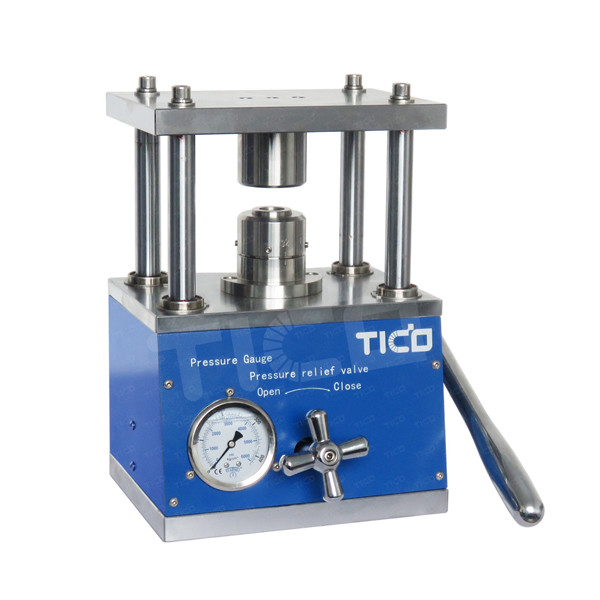

Desktop Manual Coin Cell Crimping Machine for Laboratory Research
Product Introduction
The STC-SF120 compact hydraulic crimping machine is used for all types of coin cell cases crimping, such as CR2032, CR2450, etc. CR20XX series crimping die is included as standard, the other crimping die set is optional. Coin cell disassembly die and tablet pressing die can be optional.
Features
• Stainless steel crimping die ,anti-corrosion and durable.
• It's desinged with crimping height limitation to avoid damage.
• Embedded pressure gauge designed to observe and accurately control sealing pressure.
• No liquid leakage no vibration during battery Crimping.
• Different die set can be optional, such as CR20XX /CR24XX crimping die, disassembly die, tablet pressing die etc.
• Small volume, convenient operation, it can operate inside the glove box.
Technical Parameter
| Brand name | TICO |
|
Standard crimping die |
CR20XX crimping die, other size crimping die is optional |
|
Coin cell disassemble die |
Optional |
|
Operation |
Manual |
|
Operation force of hand rocker |
< 5.5kg |
|
Dimension |
L232xW165xH320mm |
|
Weight |
25kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
