Product Details:
|
| Product Name: | Pouch Cell Final Vacuum Sealing Machine | Working Voltage: | AC110V / 220V Optional |
|---|---|---|---|
| Sealing Blade Size: | L200 X W5mm , Customizable | Upper /Lower Sealing Blade Temp.: | RT~ 250℃, Adjustable |
| Sealing Time: | 0~99s Adjustable | Heat Sealing Pressure: | 0.5~0.7Mpa |
| Power: | 1000W | Dimension: | L500 * W500 * H700mm |
| High Light: | 1000W Pouch Cell Sealer,0.7Mpa Pouch Cell Sealer,Adjustable Lab Sealing Machine |
||

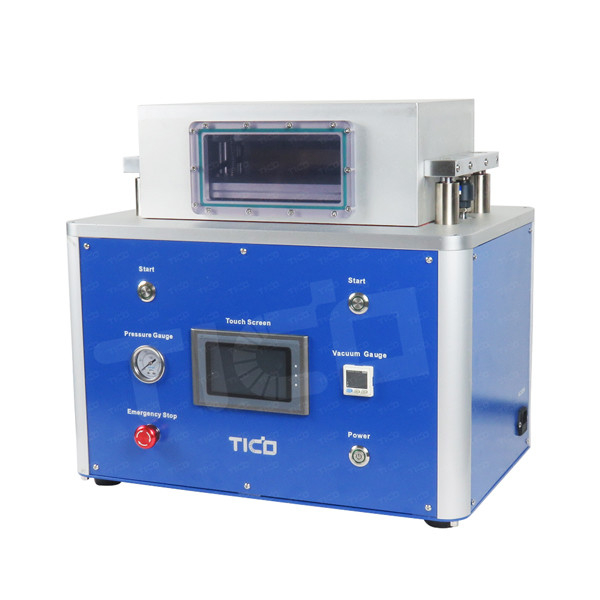

Pouch Cell Secondary Sealing Machine for Lab Research
Brief Introduction
STC-BEF-200 vacuum sealer is used for pouch cell final vacuum sealing after electrolyte injection and cell formation, it is with auto piercing function to de-gassing the cell and do a secondary sealing under vacuum condition. It is touch screen operation high automation.
Key Features
● With piercing needle, piercing function can be completed automatically.
● Sealing blade is made from copper with good heat conduction.
● Upper and lower sealing blade sealing pressure can be adjusted.
● Upper and lower sealing blade temperature be controlled separated and settable, digital display by thermostat.
● The lid can go down only by pressing the 2 start buttons at the same time to avoid hands get injured.
● Touch screen operation, high automation.
● Sealing time can be set.
● Through perspective window to observe it during working.
● The lid will open automatically when it finished sealing.
Technical Parameters
|
Model |
STC-BEF-200 |
|
Working voltage |
AC110V / 220V optional |
|
Sealing blade length |
200mm, customized size is available |
|
Sealing blade width |
5mm, customized size is available |
|
Upper sealing blade temperature |
Room temperature to 250℃ adjustable |
|
Lower sealing blade temperature |
Room temperature to 250℃ adjustable |
|
Sealing temperature accuracy |
±2℃ |
|
Sealing time |
0~99s adjustable |
|
Heat sealing pressure |
0.5~0.7Mpa |
|
Power |
1000W |
|
Dimension |
L500 * W500 * H700mm |
|
Weight |
80kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
