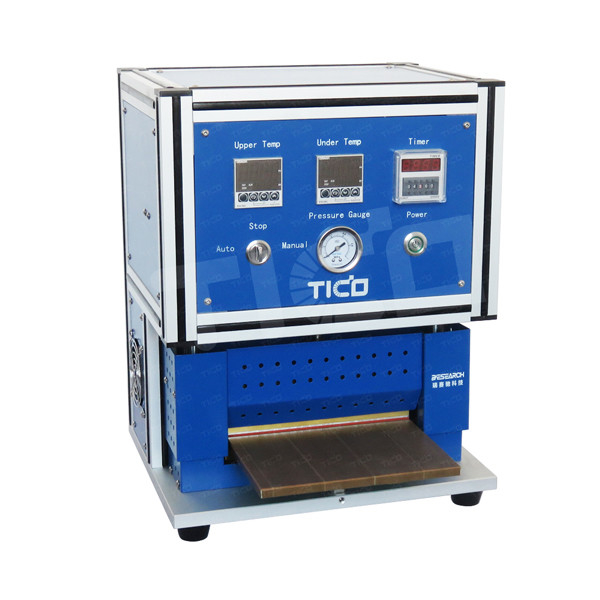

Cup Edges Pouch Battery Hot Sealing Equipment Polymer Aluminum Laminated

Cup Edges Pouch Battery Hot Sealing Equipment Polymer Aluminum Laminated
Cup Edges Pouch Battery Hot Sealing Equipment Polymer Aluminum Laminated

Large Image :  Cup Edges Pouch Battery Hot Sealing Equipment Polymer Aluminum Laminated

Product Details:
Place of Origin: Shenzhen, China
Brand Name: TICO
Model Number: STC-SFZ200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wood Packing
Delivery Time: 20~25 working days
Payment Terms: T/T
Supply Ability: 20 sets per month

Cup Edges Pouch Battery Hot Sealing Equipment Polymer Aluminum Laminated

Description
Product Name: Polymer Pouch Battery Edge Hot Sealing Machine Sealing Blade Size: L×W: 200×5mm
Upper Blade Temp.: Room Temperature~300℃, Suggest: 200℃ Lower Blade Temp.: Room Temperature~300℃, Suggest: 180℃
Working Voltage: AC110 / 220V Available Power: 1KW
Dimension: L320 * W320 * H500mm Weight: 40kg
High Light:

Laminated Battery Heat Sealing Machine

,

Cup Edges Battery Heat Sealing Machine

,

Polymer Sealing Equipment

Pouch Cell Aluminun Laminated Case Top & Side Heat Sealing Machine for Lab R&D



Brief Introduction



STC-SFZ200 is a hot sealing machine, mainly used for pouch cell aluminum cup edges with tabs before electric liquid filling process. The sealing head is made of copper with a godd heating conduction, the heating temp of upper and lower sealing head was controlled separated and can be setable.



Features



● Upper and lower sealing head temperature can be controlled separated, temperature is adjustable and digital display by thermostat.

● Sealing head is made of copper with a good heat conduction.

● Pressure gauge is embedded and easy to che the sealing pressure.

● Firmly sealing.

● Within the safety protection cover to avoid scalding.

● Sealing time can be adjusted by timer.

● The sealing blade length is 200mm, battery case < 200mm can be used without replacing sealing blade.



Technical Parameters



 Model  STC-SFZ200
 Working voltage  AC110V/220V optional
 Sealing blade length  200mm, customized size is available
 Sealing balde width  5mm, customized size is available
 Upper sealing blade temperature  Room temperature~300℃ adjustable, 200℃ is suggested
 Lower sealing blade temperature  Room temperature ~300℃ adjustable, 180℃ is suggested
 Sealing time  2~3s, 0~99s settable
 Sealing pressure  0.5~0.7Mpa
 Power  1000W
 Dimension  L320 * W320 * H500mm
 Weight  40kg


Warranty



1 year warranty with lifetime support. Man-made damage is not covered.



FAQ



1. Are you a manufacturer?



A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.



2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.



3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.



4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
