| Brand Name: | TICO |
| Model Number: | STC-BYF-200 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T |
Pouch Cell First Sealing Machine for Battery Lab Battery R&D
Brief Introduction
STC-BYF-200 is used for vacuum hot sealing after electrolyte diffusion of pouch cell Li-ion batteries. It controls the main vacuum pumping box and pneumatic heat sealing components to automatically complete the vacuum heat sealing of laminated- aluminum battery case. Touch screen operation makes it high automation.
Features
• Copper material sealing head with good heat transfer effect to save power consumption and improve work efficiency, more energy-saving.
• Upper and lower sealing head temperature can be adjusted separately and digital display.
• Through perspective window to observe the changes inside the chamber during work.
• This equipment is applicable for different sizes of batteries and easy to regulate.

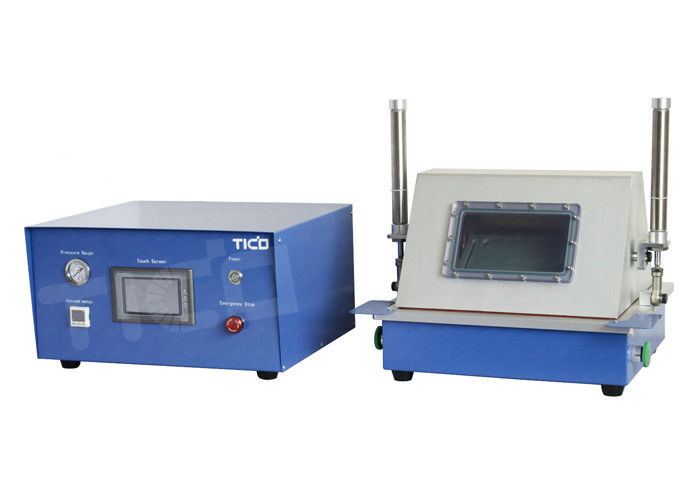

• Split design of sealing unit and control unit makes the equipment can work either in the glove box or the production line. KF40 feedthrough and tubes are included to allow using into glovebox.
• Touch screen operation.
Technical Details
| Model | STC-BYF-200 |
| Power | AC110V/220V optional upon request |
| Sealing blade length | 200mm |
| Sealing width | 5mm |
| Sealing temperature | Room temperature ~ 250℃ adjustable |
| Temperature control accuracy | ±2℃ |
| Heat sealing time | 0~2S adjustable |
| Vacuum degree | Max -95Kpa adjustable |
| Air source | 5~7kg/c㎡ |
| Dimension |
Sealing unit: L470 * W485 * H436mm Control unit: L420 * W325 * H225mm |
| Weight | 50kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
|
|
