Hydraulic Cylindrical Cell Manual Crimping Machine

Name: Hydraulic Cylindrical Cell Manual Crimping Machine
Brand: Shenzhen TICO Technology Co.,Ltd.
SKU: STC-CSF-18
Price: 1,500.00 USD
Availability: InStock

Brand Name:	TICO
Model Number:	STC-CSF-18
MOQ:	1 Set
Price:	Negotiable
Delivery Time:	7~12 days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Product Name:

Cylindrical Cell Manual Crimping Machine

Standard Die:

18650 Crimping Die As Standard, Other Size Die Is Optional.

Operation Mode:

Manual

Material:

High Strengthen Chorme Steel

Dimension:

L280 * W270 * H440mm

Weight:

24kg

Packaging Details:

Wood Packing

Supply Ability:

20 sets per month

Highlight:

Hydraulic Cylindrical Cell Lab Equipment

35kg Cylindrical Cell Lab Equipment

Cylindrical Cell Crimping machine

Product Description

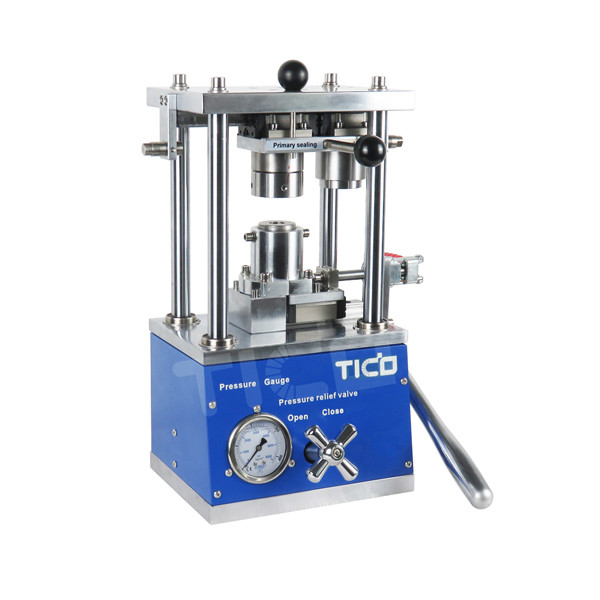

Hydraulic Cylindrical Cell Manual Crimping Equipment for Battery R&D

Brief Introduction

The STC-CSF-18 is a compact hydraulic crimping machine for all types of cylindrical cell crimping for battery labs, such as 18650, 26650, 21700, AA, AAA, etc. Small size allow it to be put into glove box through big antechamber.

Features

● Primary & secondary crimping die included for perfect sealing.

● Different crimping die can be optional.

● It can be put into glove box through big antechamber.

● Easy to replace different crimping die.

Technical Parameters

Model	STC-CSF-18
Crimping die	18650 crimping die as standard, others crimping die is optional
Hand rocker operating strength	<6kg
Pressure gauge	Normal cylindrical cell sealing pressure gauge range is about 80-100kg/cm2. The pressure parameters of this machine have been adjusted before shipment. For special cases where higher pressures are required (maximum pressure 200kg/cm2 about 8 tonnes), please consult with the manufacturer before adjusting.
Material of structural components	High-strength chrome steel with environmental plating and spraying treatment.
Dimension	L280 * W270 * H440mm
Weight	24kg

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
