Product Details:
|
| Product Machine: | Stacking Machine | Stacking Size: | Min 40x40mm, Max 150x150mm, Tab Size Not Covered. Customizable |
|---|---|---|---|
| Stacking Thickness: | Max 30mm | Separator Roll Diameter: | φ250mm |
| Stacking Layer: | Max 500 Layers Settable | Power Consumption: | 1KW |
| Dimension: | L1000 * W780 * H1050mm | Weight: | 350kg |
| High Light: | Pouch Cell Electrode Stacking Equipment,Battery Electrode Stacking Equipment,1KW Auto Stacker Machine |
||

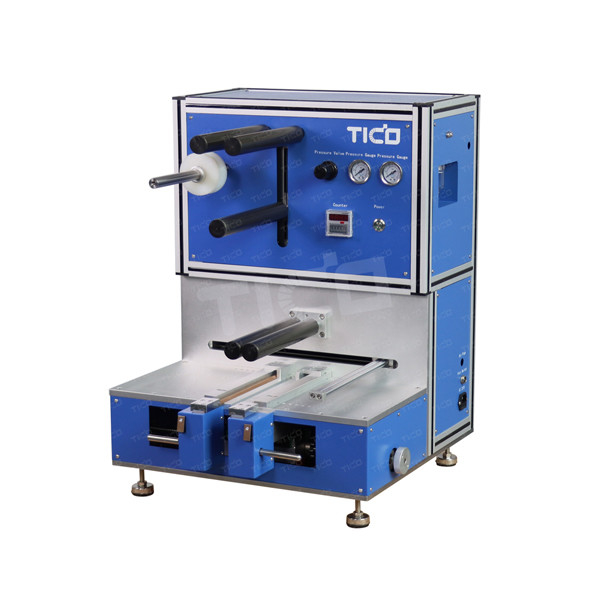

Electrode Stacking Equipment for Pouch Cell Research
Brief Introduction
STC-DPB200 is a semi-auto stacking machine which is used for stacking pouch cell anode, cathode and separator by "Z'' shape to make a pouch battery cell core. It is manually feeding material, electrode position correction and laminating process are completed automatically. It is high stacking efficiency, high accuracy of stacking. It is perfect for high efficiency stacking requirement, battery pilot production, factory trial-production, etc.
Features
● Stacking qty can be pre-set.
● Stacking size is adjustable, maximum stacking size 150x150mm.
● Roll-type separator automatic servo constant tension control.
● Separator automatic photoelectric correction control.
● Manually feeding electrode, automatic position, mechanical arm pick up electrode, automatically stacking.
● More compact size makes it be a ideal machine for battery lab.
Technical Parameters
| Model | STC-DPB200 |
| Working voltage | AC110V/220V optional |
| Stacking size |
Min 40x40mm ,Max 150x150mm,tab size is not covered . Customized size is available |
| Stacking thickness | Max 30mm |
| Separator roll diameter | φ250mm |
| Stacking layer | Max 500 layers settable |
| Power consumption | 1KW |
| Air pressure | 0.5~0.7Mpa |
| Dimension | L1000 * W780 * H1050mm |
| Weight | 350kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
