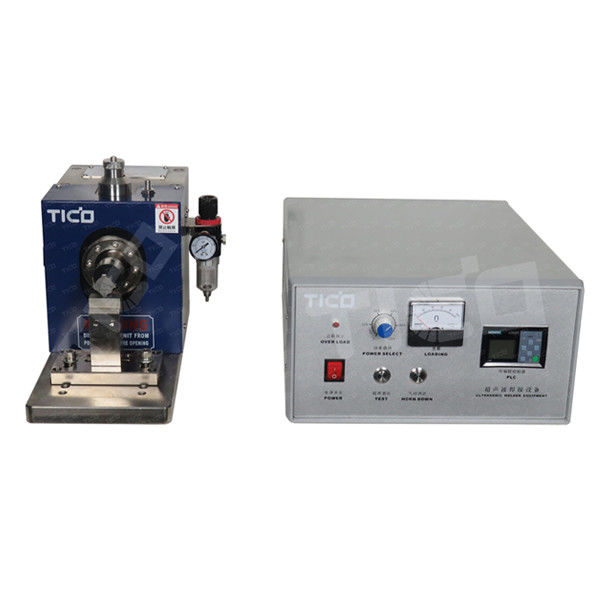

Cylindrical Cell Ultrasonic Spot Welding Machine 40KHz 1000W

Cylindrical Cell Ultrasonic Spot Welding Machine 40KHz 1000W
Cylindrical Cell Ultrasonic Spot Welding Machine 40KHz 1000W

Large Image :  Cylindrical Cell Ultrasonic Spot Welding Machine 40KHz 1000W

Product Details:
Place of Origin: Shenzhen, China
Brand Name: TICO
Model Number: STC-CSH1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wood Packing
Delivery Time: 15~ 20 working days
Payment Terms: T/T
Supply Ability: 30 sets per month

Cylindrical Cell Ultrasonic Spot Welding Machine 40KHz 1000W

Product Name: Ultrasonic Spot Welding Machine Working Voltage: AC110V/220V Optional
Output Power: 1000W Generator Frequency: 40KHz
Welding Time: 0.01~2S Welding Pressure: 0.5~0.7Mpa
Welding Layers: 20 Layers For Reference, Depending On Different Material Welding Size: 4x4mm , Customizable
Dimension: Controller: L520 * W410 * H180mm Welder: L400 * W240 * H325mm Weight: 80Kg
High Light:

1000W Ultrasonic Spot Welding Machine


Cylindrical Ultrasonic Spot Welding Machine


ultrasonic spot welder

1000W Ultrasonic Spot Welding Machine for Cylindrical Cell Research


Brief Introduction


STC-CSH1000 ultrasonic metal welding machine is designed for battery lab research. It has the advantages of strong welding spot, low internal resistance of the welding spot, and good appearance without oxidation traces. It can achieve various effects by choosing relevant frequencies and powers according to different requirement.




● The conductibility after welding is good and the resistivity is quite low.

● The welding can be perfectly conducted even if contaminant or oxide exists on the metal surface. Ultrasonic have the function of cleansing.

● Pretreatment is not required for the workpiece. The fusion can be completed without solder and soldering paste, quite economic and convenient.

● The welding time is quite short, fusion can be completed within 0.01~2 seconds.

● The welding head is made of wear-resistant material and with good durability.


Technical Parameters




 Working voltage

 AC110V/220V optional

 Output power


 Generator frequency


 Welding time


 Welding pressure


 Welding layers

 20 layers for reference,depending on different material

 Welding size

 4x4mm, customized size is available


 Controller: L520 * W410 * H180mm

 Welder: L400 * W240 * H325mm






1 year warranty with lifetime support. Man-made damage is not covered.




1. Are you a manufacturer?


A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.


2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.


3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.


4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
