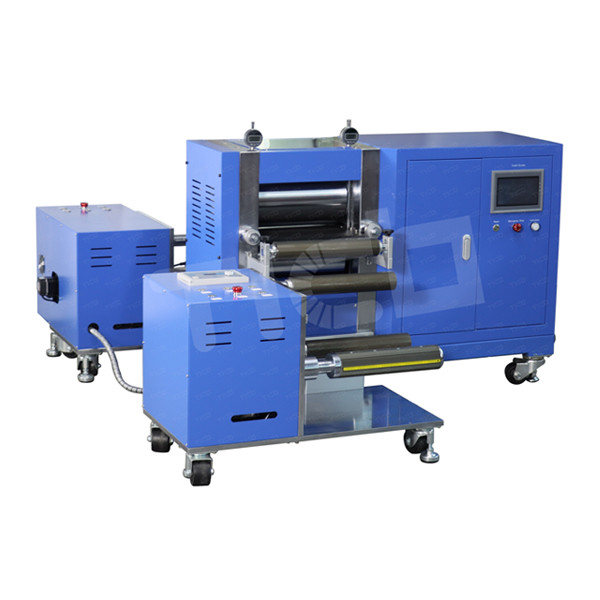

Roll to Roll Pouch Battery Hydraulic Calendering Machine with Winding & Unwinding Device

Roll to Roll Pouch Battery Hydraulic Calendering Machine with Winding & Unwinding Device
Roll to Roll Pouch Battery Hydraulic Calendering Machine with Winding & Unwinding Device

Large Image :  Roll to Roll Pouch Battery Hydraulic Calendering Machine with Winding & Unwinding Device

Product Details:
Place of Origin: Shenzhen, China
Brand Name: TICO
Model Number: STC-HDG300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wood Packing
Delivery Time: 15~ 20 working days
Payment Terms: T/T
Supply Ability: 10 sets per month

Roll to Roll Pouch Battery Hydraulic Calendering Machine with Winding & Unwinding Device

Description
Product Name: Hydraulic Roll Press Machine Pressing Pressure: Customizable
Pressing Speed: Max 6m/min Roller Diameter: φ200mm
Roller Width: 330mm Installation Size: L2500 X W1500 X H1300mm
Weight: 600kg

Roll to Roll Pouch Battery Hydraulic Calendering Machine with Winding & Unwinding Device



Brief Introduction



It is a hydraulic rolling press machine, which is used for battery electrode rolling press process. Winding&unwinding device is optional.



Features



• The pressing thickness is adjustable.

• It is designed with tension control.

• Winding&unwinding device with correction function.

• Touch screen control, high automation.



Technical Parameters


 Model  STC-HDG300

 Pressing pressure

 Max 25T, customized pressure is available

 Pressing speed

 Max 6m/min

 Roller diameter

 φ330mm

 Roller material

 9Cr3Mo

 Roller surface hardness

 >HRC65

 Roller width

 330mm

 Pressing thickness

 Max 2mm

 Pressing accuracy

 ±1.5μm

 Power supply

 AC220V

 Power

 3KW

 Installation size

 L2500 x W1500 x H1300mm

 ( Roll press machine + winding & unwinding device )

 Compressed air

 0.5~0.8Mpa

 Weight

 ≈ 600kg



Warranty



1 year's warranty with lifetime support.



FAQ



1. Are you a manufacturer ?



A: Yes, our factory is located in Shenzhen, China . We have more than 10 years experience for manufacturing battery lab research equipment .
We owns a professional R&D department.



2. Do you accept customized product ?

A : Yes. Most of our products can be customzied to meet different requirements.



3. Will you provide test video before dispatch?

A : Yes, we take test video for every equipment before dispatch, which will display how to use it.



4. Can you offer overseas installation service ?

A : Yes, we can dispatch professional engineer for on-site installation service.
