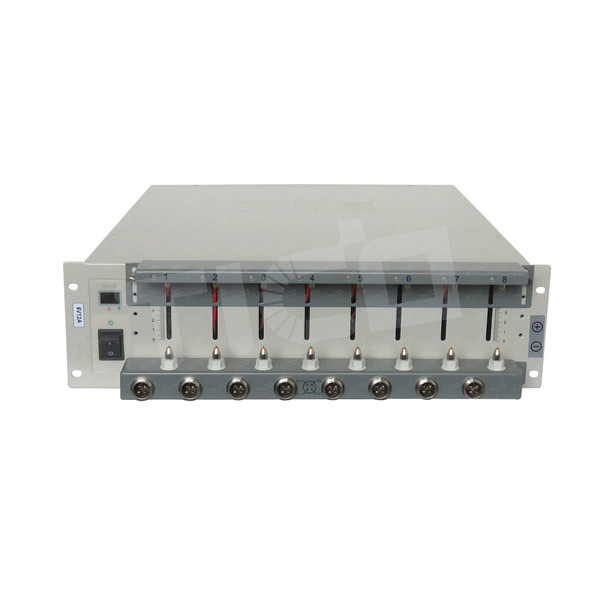

8 Channels 5V15A Battery Tester

Brand Name:	TICO
Model Number:	STC-4008Q-5V15A-S1
MOQ:	1 Set
Price:	Negotiable
Delivery Time:	7~12 days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Product Name:

Battery Tester

Input Power:

AC220V±10% / 50Hz

Resolution:

AD:24bit; DA:16bit

Input Resistance:

≥100MΩ

Channel Qty:

Dimension:

L483 * W404 * H130mm

Packaging Details:

Standard export wooden packing

Supply Ability:

5 sets per month

Product Description

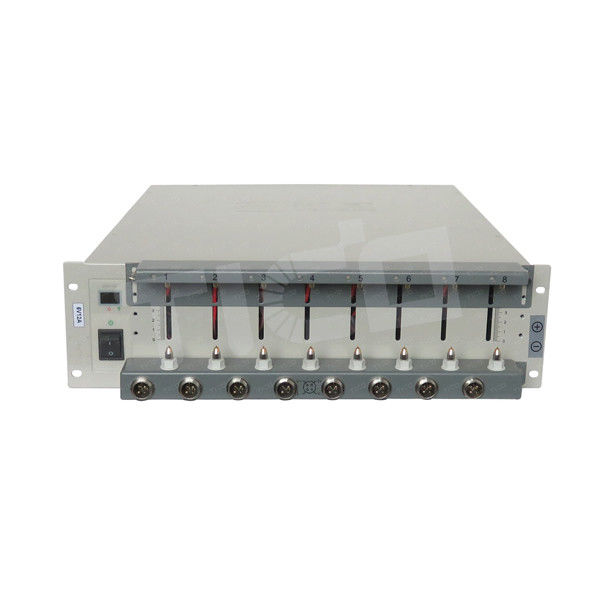

8 Channels 5V15A Battery Tester

Brief Introduction

The 8 Channels 5V15A Battery Tester is a high-precision, high-throughput testing device specifically designed for performance testing of small and medium-sized battery cells. Adopting a multi-channel independent control architecture, it can simultaneously perform parallel testing on 8 battery cells. Integrated with four-range wide dynamic testing technology, the device covers a voltage range of 25mV-5V and a precise current range of 300mA-15A, meeting the full-dimensional testing needs such as formation, capacity grading, and cycle life testing for various batteries including lithium-ion, lithium-polymer, nickel-hydrogen, and nickel-cadmium batteries.

Key Features

● The equipment employs four current ranges: 300mA, 3A, 6A, and 15A. This wide range allows for high-precision measurement of small-current details and high-current charge/discharge tests up to 15A, making it particularly suitable for R&D scenarios requiring tests at different C-rates.

● Test data can be managed centrally via LAN and exported to formats like Excel.

● Each channel operates completely independently and can run different test steps.

● High Accuracy & Rapid Response.

Technical Parameters

Voltage			AC220V ±10% / 50Hz
Input power			1000W
Resolution			AD: 24bit; DA: 16bit
Input resistance			≥ 100MΩ
Overall system efficiency			>65%
Noise			<75dB (measured at 1m)
Parallel ability			Channel parallelism is supported
IP Level			IP20
Channel features			Constant current source and constant voltage source with independent pairs of closed-loop structure
Channel control mode			Independent control
Data acquisition			Four-wire connection
Voltage	Output range		25mV~5V
	Minimum discharge voltage		1.5V (3m wire length)
	Accuracy		± 0.05% of FS
	Stability		± 0.1% of FS
Current	Output range		Range 1: 300mA Range 2: 3A Range 3: 6A Range 4: 15A
	CV cut-off current		Range 1: 0.6mA Range 2: 6mA Range 3: 12mA Range 4: 30mA
	Minimum output current		1.5mA
	Accuracy		± 0.05% of FS
	Stability		± 0.1% of FS
Power	Single channel output power		75W
	Accuracy		±0.1% of FS
	Stability		± 0.2% of FS
Time	Current response time		≤1ms (10% ~ 90% of FS)
	Current conversion time		≤10ms (-90% ~ 90% of FS)
	Working step time		≤(365*24)h/step Time format-00:00:00.000(h, m, s, ms)
	Frequency		10Hz (Minimum time interval: 100ms)
Working mode	Charge/Discharge modes		CC,CV,CCCV,CP,Pulse,etc
	Cut-off condition		Voltage, current, time, capacity, energy,etc
	DCIR		supported
	Pulse charge/discharge mode		Current, Power
	Min pulse		200ms
	Pulse counts		Up to 32
	Charge and Discharge switch		unsupported
	Cut-off condition		Voltage, ΔTime
Cycle	Max cycles		1 ~ 65535 times
	Max steps		≤255
	Cycle nest		<10
Protection	Software protection		Safety protection conditions can be set, including: voltage lower limit, voltage upper limit, current lower limit, current upper limit, etc.
	Hardware protection		Anti-reverse connection, over-voltage, over-current, over-temperature, etc.
Communication and Computer Configuration Requirements		CPU	Pentium dual-core or above, frequency 4G or above
		Computer memory	Recommended 16G or above
		Connection for PC	TCP/IP
		Disk drive config	Min. 500GB
		PC operating system	Windows 7 and above
		Database	MySQL
		Data export format	EXCEL,TXT,GRAPH,PDF,CSV
		Communication expansion(optional)	Support CAN, RS485 communication and BMS communication, with DBC configuration function
Operation and storage environment requirement		Operating temperature	0℃~40℃ (When the temperature is 25±10℃, the accuracy offset caused by temperature is less than 50ppm /℃)
		Storage temperature	-10℃~50℃
		Operating humidity	≤70% RH (no moisture condensation)
		Storage humidity	≤80% RH (no moisture condensation)
Per unit main channels No.			8
Dimensions(WDH)(mm)			3U(19"),483 * 404 * 130

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
