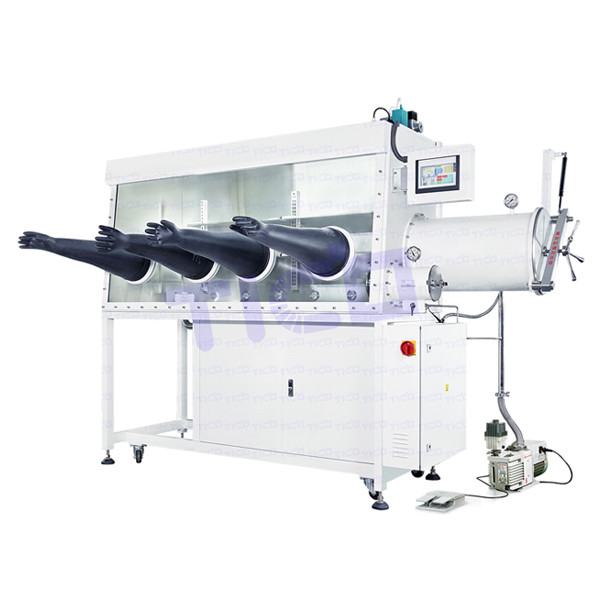

PLC Vacuum Glovebox Chamber One Section Double Work Station

PLC Vacuum Glovebox Chamber One Section Double Work Station
PLC Vacuum Glovebox Chamber One Section Double Work Station

Large Image :  PLC Vacuum Glovebox Chamber One Section Double Work Station

Product Details:
Place of Origin: Shenzhen, China
Brand Name: TICO
Model Number: TC-1220GB11
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wood Packing
Delivery Time: 15~20 working days
Payment Terms: T/T
Supply Ability: 50 sets per month

PLC Vacuum Glovebox Chamber One Section Double Work Station

Description
Product Name: Glove Box Feature: Internet Of Things
Display System: PLC Application: Laboratory Use
Material: Metal
High Light:

PLC Vacuum Glovebox

,

Laboratory Vacuum Glovebox

,

One Section glove box chamber



Brief Introduction



STC-VGB-11 is an internet of things vacuum glovebox, centralized equipment management intelligent analysis & early warning of equipment status, the abnormal alarm message is actively pushed, remote fault diagnosis and online debugging. H2O & O2<1ppm. It is widely used for Lithium Battery, Physical Chemistry, OLED&PLED, Organometallic, Solar Cell, Semi-Conductor, Catalyst, Material Handling, Fine Chemicals, Polymeric Materials, Powder Metallurgy, Special Welding, Special Lamps, Nuclear Technology, Pharmaceutical etc.



Features



Intelligent analysis & early warning of equipment status, the abnormal alarm message is actively pushed, remote fault diagnosis and online debugging

H2O & O2<1ppm

Low leak rate

PLC control

Wide application

World famous brand components are used.



Main Data



1) H2O & O2: <1ppm

2) Leakage rate of box: 0.05 vol%/h



Technical Parameter



House

● House

   Material: Stainless steel type 304, thickness 3mm

   Inside surface: Brushed finish

   Outside surface: Enameled, White

   Inside dimension: L*W*H = 1220*750*900mm



 Window

Inclined window: sight safety glass with thin film, thickness 8 mm



 Glove ports

   Material:POM, O-ring sealed



● Gloves

   Type: Butyl, thickness 0.4mm

   Dia.: 8 inch, length 32 inch



● Dust Filter

   Dust filter: 0.3 micron 1 gas inlet and 1 gas outlet filter included



● Shelves

   Stainless shelves: 3 layers mounted inside



 Box Light

   LED lamp: Front mounted above each window



● Feedthroughs

   DN 40 KF: several pieces for customers’ usage

   Electrical feedthrough: 1 electrical plug for inside (AC220V)

   Power need included



Main Antechamber



 Chamber

   Inside dimension: ø 360mm,length: 600mm

   Material: Stainless steel type 304

   Surface: Brushed finish inside and Painted same colour outside (white)



● Accessories

   Door: Double door, anodized aluminium

   Thickness: 10mm

   Manometer: Analog display.



● Control

   Operation: manual operation



Gas Purification



● Purifier Function

   Removal of H2O and O2

   Container material: Stainless steel type 304

   Absorber unit: Copper catalyst: 5Kg

                          Molecular sieve: 5 Kg

   Capacity of purifying: removal of 60L O2

                                      removal of 2Kg H2O

   H2O and O2: less than 1ppm



● Gas Circulation

   Working gas: Nitrogen, Argon and Helium

   Blower: 90m3 /h



● Regeneration Operation: Auto. PLC controlled Regeneration. Regeneration gas: working gas / H2 mixture (H2: 5-10%)



● Pump

   Type: 12m3 /h Rotary vane pump, Oil mist

   Angle valves, Gas ballast control



● Valves

   Main valves: DN 40 KF electro-pneum

   Angle valves



Controlling system



● Function: includes self-diagnosis, electric failure and restart, pressure controlling and self-adapt, circulation controlling, code protection, union controlling adopts, SIEMENS PLC touch screen etc.



● Pressure controlling: The pressure in the box is controlled by PLC, the pressure can be settled between +/- 10 mbar,while beyond +/- 12 mbar the system will automatically protect itself.



● Foot switch: controlling the pressure,easy to raise or depress the pressure.



Display system



Siemens PLC, which can display the operation state, pressure and system record, etc.



Controlling of vacuum system



British EDWARDS vacuum pump, which can be controlled by PLC or by hand. The type is 12m3 /h. It can vacuumize the antechamber and keep the balance of the pressure. The limit vacuum is ≤ 2x10-1 pa.



● Moisture analyzer

   Measuring Range: 0~500ppm

   P2Omoisture sensor is adopted in the moisture analyzer, corrosion resistant, renewable by acid cleaning, especially applicable for corrosive    environment like lithium battery and organometallics to avoid discarding once contaminated. Display by PLC.



● Oxygen analyzer

   Measuring range of 0~1000ppm

   ZrO2 oxygen solid sensor, long life, to be exposed in the air without any consumption.

   Display by PLC.



● Solvent absorber

   Absorber unit: activated carbon: 2Kg

   Connected with main cycle pipeline, the cycled air can go through absorber at first and absorb organic solvent atmosphere.



● IOT System

  •    Product Function.
  •    Login control system from WeChat Public Number.
  •    Login control system by scanning QR code.
  •    Real-time monitoring of device status.
  •    Data backup and historical data query.
  •    Alarm message informed by SMS or Email.
  •    Remote debugging and fault diagnosis.
  •    One key to contact customer service.
  •    Check the help manual online.



Warranty



1 year's warranty with lifetime technical support.
