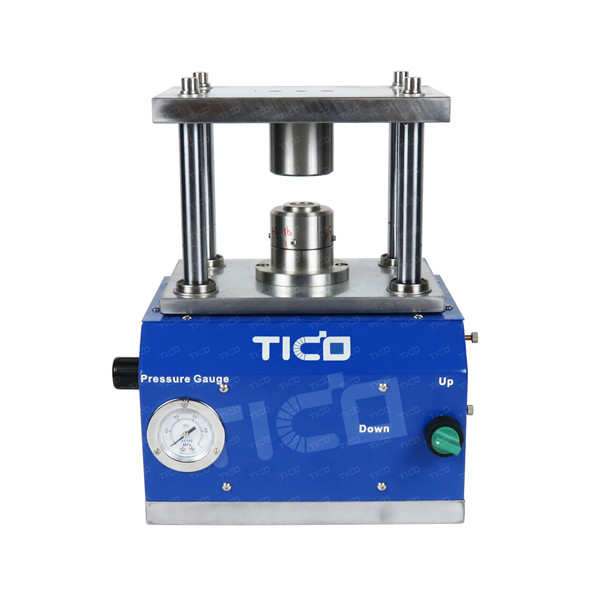

CR20xx Coin Cell Crimping Equipment Machine Gas Driven Chrome Steel

CR20xx Coin Cell Crimping Equipment Machine Gas Driven Chrome Steel
CR20xx Coin Cell Crimping Equipment Machine Gas Driven Chrome Steel

Large Image :  CR20xx Coin Cell Crimping Equipment Machine Gas Driven Chrome Steel

Product Details:
Place of Origin: Shenzhen, China
Brand Name: TICO
Model Number: STC-QF20
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard export wooden packing
Delivery Time: 20~25 working days
Payment Terms: T/T
Supply Ability: 130 sets per month

CR20xx Coin Cell Crimping Equipment Machine Gas Driven Chrome Steel

Description
Product Name: Coin Cell Crimping Machine Standard Die: CR20xx, Others Optional
Air Source: Argon, Nitrogen, Or Compressed Air Material: High Strengthened Chrome Steel
Size: L220 * W220 * H420mm Weight: 28Kg
High Light:

Gas Driven Coin Cell Crimping Equipment

,

CR20xx Coin Cell Crimping Equipment

,

chrome steel Coin Cell Machine

Gas Driven Coin Cell Crimping Equipment for Coin Cell CR20xx Series Case



Brief Introduction



The STC-QF20 is a compact gas driven crimping machine for all types of coin cell cases crimping, such as CR2032, CR2450, etc. CR20xx series crimping die is included as standard, the other crimping die set is optional. The crimping die is made of stainless steel, which is more corrosion resistance and longer lifetime.



Features



● Crimping die is made of stainless steel which is more corrosion resistance and longer lifetime.

● The lower die adopts high precision positioning ring to limit the position and control the crimping height to avoid the damage of battery and crimping die if the crimping pressure is excessive.

● If battery get stuck and cannot be taken out, the cell can be pushed out easily by ratoting the top screw.

● Compressed air or inert gas can be used. External connection of compressed gas exhaust can prevent damage to glove box atmosphere.

● Precision die design ensures precise and reliable seal forming, solid steel structure design, stable and safe use.

● Pure pneumatic operation, no electricity, easy to use.

● Perfect to be used inside of glovebox, no leakage.

● Small volume which can be put into glovebox through big antechamber.

● With the function of short circuit prevention for crimping.

● Fast speed of crimping.

Coin cell disassembling die can be optional, easy to replace.



Technical Parameter



 Model  STC-QF20
 Standard die  CR20xx crimping die, other crimping die is optional. Disassembling die is optional as disassembling machine
 Driven mode  Gas driven
 Air source  Argon, nitrogen, or compressed air. It is not recommended to use compressed air when crimper used inside of glovebox
 Exhause design  Exhaust port is specially designed, which can be connected with KF40
 Air consumption  approximately 480ml each crimping
 Crimping pressure

 Manual value control, maximum 1Mpa, 0.7MPa is recommend, accuracy within ±0.5%

 Crimping stroke  30mm
 Main structure  material  High strengthen chrome steel with environmental protection plating and painting treatment
 Dimension  L220 * W220 * H420mm
 Weight  28kg



Warranty



1 year warranty with lifetime support.



FAQ



1. Are you a manufacturer?



A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.



2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.



3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.



4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
