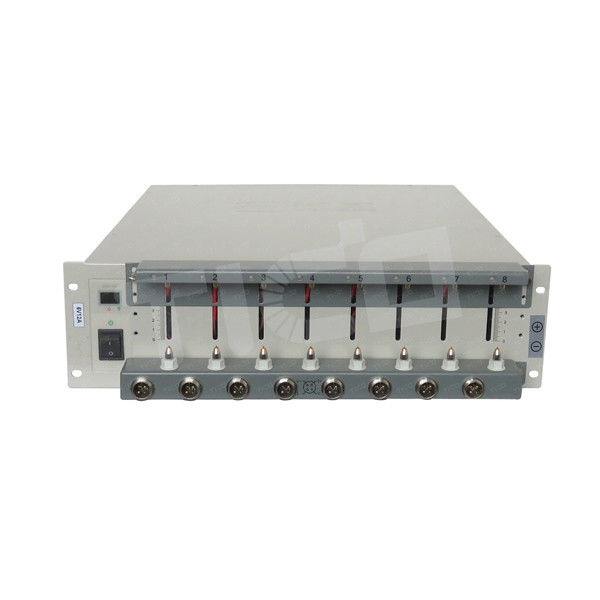

5V 12A 8 Channel Pouch Cell Battery Testing Machine 4-wire Connecting

I'm Online Chat Now

5V 12A 8 Channel Pouch Cell Battery Testing Machine 4-wire Connecting

5V 12A 8 Channel Pouch Cell Battery Testing Machine 4-wire Connecting
5V 12A 8 Channel Pouch Cell Battery Testing Machine 4-wire Connecting

Large Image :  5V 12A 8 Channel Pouch Cell Battery Testing Machine 4-wire Connecting

Product Details:
Place of Origin: Shen Zhen, China
Brand Name: TICO
Model Number: STC-4008-5V12A-TB-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 8~15 working days
Payment Terms: T/T
Supply Ability: 120 sets per month

5V 12A 8 Channel Pouch Cell Battery Testing Machine 4-wire Connecting

Description
Product Name: 5V12A Battery Tester Channels: 8
Per Channel Control Voltage Range: 25mV~5V Per Channel Current Range: Range 1: 5mA~1A , Range 2: 1A~6A, Range 3: 6A~12A
Per Channel Output Power: 60W Voltage And Current Testing Sample: 4-wire Connecting
High Light:

8 Channels Battery Testing Machine

,

Multi ranges Battery Testing Machine

,

Lab Pouch Cell Testing Machine

5V12A 8 Channels Battery Testing Machine for Lab R&D



Product Introduction



CT-4008-5V12A-TB-F is a three range output current tester, 5mA-1A, 1A-6A, 6A-12A. The accuracy for current and voltage on these channels is ±0.05% FS. It is widely used for manufacturers, universities and labs. The flexibility of the 5V12A analyzer allows it to be used for a wide range of applications such as materials research, quality control in manufacturing, research & development, battery and cell testing, Super-capacitor testing, etc.



Feature



● Multi ranges.

● Wide application.

● High accuracy, ±0.05% FS.

● Fast response time.

● Each channel is independent.

● Side air intake on the left / right side & eight test channels,the inventive heat-radiating system is practical and feasible and can increase heat-radiating efficiency and space utilizaion rate.



Technical Parameter



 Brand Name  TICO
 Input Power  AC 220V ±10% / 50Hz
 Resolution  AD: 16bit; DA: 16bit
 Input Resistance  ≥1GΩ
 Input Power  Input Power
 Channel Features  Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure
 Channel Control Mode  Independent Control
 Voltage  Per Channel Control Voltage Range  25mV~5V
 Minimum discharge voltage  Upper and lower clamp discharge to 1V, 2m cables to 1.5V
 Accuracy  ± 0.05% of FS
 Stability  ± 0.05% of FS
 Current  Per Channel Current Range

 Range 1: 5mA~1A ,

 Range 2: 1A~6A,

 Range 3: 6A~12A

 Constant current cut-off current

 Range 1: 2mA,

 Range 2: 12mA,

 Range 3: 24mA

 Accuracy  ± 0.05% of FS
 Stability  ± 0.05% of FS
 Power  Per Channel Output Power  60W
 Stability  ± 0.1% of FS
 Time  Current Response Time  Constant Current Discharge, Constant Power Discharge, Constant Resistance Discharge
 Step Time Range  Voltage, Current, Relative Time, Capacity
 Pulse Test  Charge  Constant Current Charge, Constant Power Charge
 Discharge  Constant Current Discharge, Constant Power Discharge
 Minimum Pulse Width  500ms
 Pulse Number  32 diffirent pulse for a single step
 Automated Switch  Automated switch from charge to discharge for each pulse
 Cycle  Loop Measure Range  1~65535 times
 Max Steps Per Loop  254
 Nested Loop  Nested loop Function, Max Support 3 Layers
 Protection  Power-down Data Protection
 Off-line Testing Function

 Setting Protection Condition,

 Setting Parameter: Low Voltage limit, Upper Voltage limit, Low Current limit, Upper Current limit, Delay Time, Anti-reverse Protection Model

 Voltage and Current Testing Sample  4-wire connecting
 Noise  <55dB
 Database  MySQL Database
 A Means of Communication of Upper Machine  TCP/IP Protocol
 Data Output  EXCEL 2003, 2010, TXT
 Server disk configuration  500GB
 Communication Interface  Internet Access
 Server Operating System  Windows 7
 Per Unit Main Channels No.  8
 Clamp  Alligator clamp, Polymer clamp, Ring clamp optional
 Dimension  L483 * W404 * H130mm



Warranty



1 year warranty with lifetime support. Man-made damage is not covered.



FAQ



1. Are you a manufacturer?



A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.



2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.



3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.



4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
