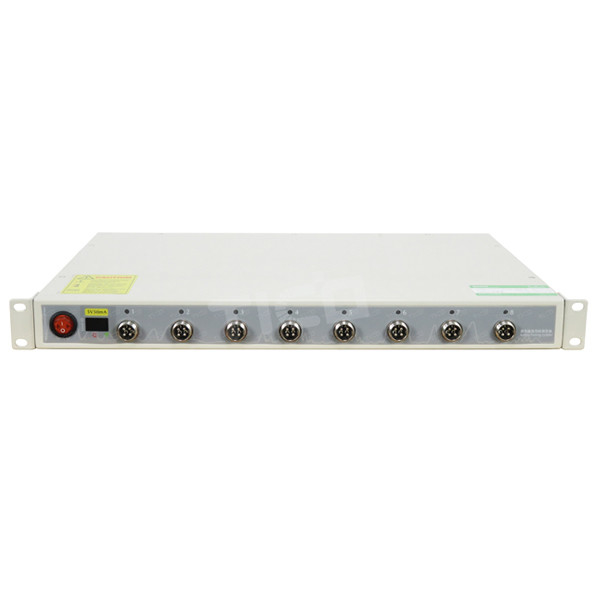

8 Channels 5V 50mA Battery Testing Equipment Pouch Cell Resistance Tester

I'm Online Chat Now

8 Channels 5V 50mA Battery Testing Equipment Pouch Cell Resistance Tester

8 Channels 5V 50mA Battery Testing Equipment Pouch Cell Resistance Tester
8 Channels 5V 50mA Battery Testing Equipment Pouch Cell Resistance Tester

Large Image :  8 Channels 5V 50mA Battery Testing Equipment Pouch Cell Resistance Tester

Product Details:
Place of Origin: Shen Zhen, China
Brand Name: TICO
Model Number: CT-4008-5V50mA-164
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 5~8 working days
Payment Terms: T/T
Supply Ability: 50 sets per month

8 Channels 5V 50mA Battery Testing Equipment Pouch Cell Resistance Tester

Description
Product: 8 Channels 5V50mA Battery Testing Machine Model: CT-4008-5V50mA-164
Channel Qty: 8 Feature: Each Channels Can Be Controlled Independently
Per Channel Control Voltage Range: 25mV~5V Input Power: 25W
High Light:

5V 50mA Battery Testing Equipment

,

25W Battery Testing Equipment

,

8 Channels Pouch Cell Resistance Tester

8 Channels 5V50mA Battery Testing Equipment



Product Introduction



CT-4008-5V50mA-164 is a 8 channels battery testing system from 5μA~1mA,1mA~25mA, 25mA~50mA. Each channel can be controlled independently. It is widely used for coin cell testing, three electrode testing, material testing. It is a perfect testing device for universities, research institution.



Features



● Each channels is controlle independently.

● Double range.

● High testing efficiency.

● Widely application.

● Compact size, easy to move.



Technical Parameter



 Input Power  AC 220V ±10% / 50Hz
 Resolution  AD16bit; DA: 16bit
 Input Resistance  ≥1GΩ
 Input Power  25W
 Channel Features  Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure
 Channel Control Mode  Independent Control
 Voltage  Per Channel Control Voltage Range  25mV~5V
 Minimum discharge voltage  -5V
 Accuracy  ± 0.05% of FS
 Stability  ± 0.05% of FS
 Current  Per Channel Current Range

 Range 1: 5μA~1mA ,

 Range 2: 1mA~25mA,

 Range 3: 25mA~50mA.

 Constant current cut-off current

 Range 1: 2μA,

 Range 2: 50μA ,

 Range 3: 100μA.

 Accuracy  ± 0.05% of FS
 Stability  ± 0.05% of FS
 Power  Per Channel Output Power  0.25W
 Stability  ± 0.1% of FS
 Time  Current Response Time  <500μs
 Step Time Range

 ≤(365*24 )hour/step.

 Time Form Support 00: 00: 00.000(h, min, s, ms)

 Data Recording  Record Condition  Time△t: 100ms
 Voltage△U: 10mV

 Current△I:

 Range 1: 2μA,

 Range 2: 50μA ,

 Range 3: 100μA.

 Record Frequency  10Hz
 Charge  Charge Mode  Constant Current Charge, Constant Voltage Charge,   Constant Current and Constant Voltage   ChargeConstant Power Charge
 End Conditon  Voltage, Current, Relative Time, Capacity, -△V
 Discharge  Discharge Mode  Constant Current Discharge,Constant Power   Discharge, Constant Resistance Discharge
 Discharge Mode  Voltage, Current, Relative Time, Capacity, -△V
 DCIR test supported
 Pulse Test  Charge  Constant Current Charge, Constant Power Charge
 Discharge  Constant Current Discharge, Constant Power Discharge
 Minimum Pulse Width  500ms
 Pulse Number  32 diffirent pulse for a single step
 Charge And Discharge Switch  continuous switched for a single pulse step
 End Condition  Voltage, Relative Time
 Cycle  Loop Measure Range  1~65535 times
 Max Steps Per Loop  254
 Nested Loop  Nested loop Function, Max Support 3 Layers
 Protection  Software Protection  Power-down Data Protection
 Off-line Testing Function

 Setting Protection Condition,

 Setting Parameter: Low Voltage limit, Upper Voltage limit, Low Current limit, Upper Current limit, Delay Time

 Hardware Protection  Additional Anti-reverse Protection Model
 Voltage and Current Testing Sample  4-wire connecting
 Noise  <85dB
 Database  MySQL Database
 A Means of Communication of Upper Machine  TCP/IP Protocol
 Data Output  EXCEL 2003, 2010, TXT
  Communication Interface  Internet Access
 Server Operating System  Windows 7
 Leak current  0.005μA
 Per Unit Main Channels No.  8
 Dimensions  L443 * W307 * H48mm



Warranty



1 year warranty with lifetime support. Man-made damage is not covered.



FAQ



1. Are you a manufacturer?



A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.



2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.



3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.



4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
