Electrolyte Vacuum Standing Box for Battery Research

Brand Name:	TICO
Model Number:	STC-BJZ-300
MOQ:	1 set
Price:	Negotiable
Delivery Time:	5~8 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen, China

Product Name:

Battery Electrolyte Vacuum Standing Box

Voltage:

AC220V/110V Optional

Power:

500W

Vacuum Degree:

-95Kpa, Vacuum Pump Is Optional

Inner Dimension Of Chamber:

L320 * W320 * H175mm

Compresses Air:

0.4~0.5Mpa

Packaging Details:

Standard export wooden packing

Supply Ability:

20 sets per month

Highlight:

Electrolyte Coin Cell Lab Equipment

Lithium Ion Coin Cell Lab Equipment

Vacuum Pouch Cell Standing Box

Product Description

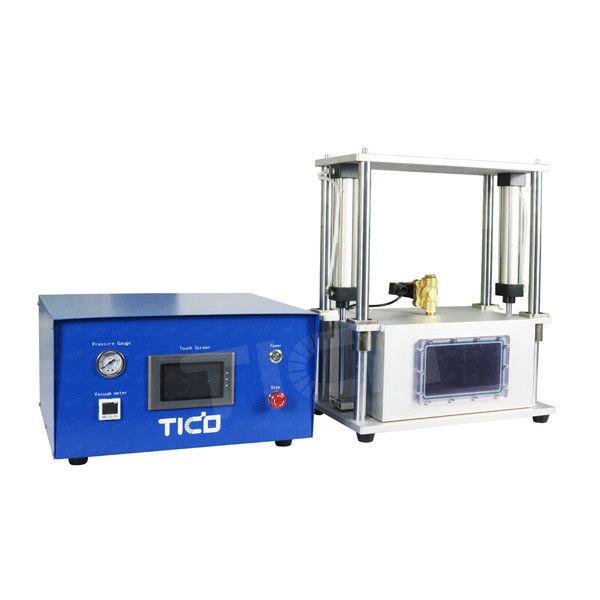

Electrolyte Vacuum Standing Box for Battery Research

Brief Introduction

This equipment is mainly used to make electrolyte and electrode fully mix under vacuum condition after electrolyte injection for pouch cell and cylindrical cell. The equipment is made of high-quality electronic components and materials. It is applicable for various sizes battery, easy operation and efficient production.

Key Features

● Fully welded vacuum chamber and fluoroelastomer sealing for stable vacuum maintenance.

● Multi-stage cycles operation function makes the electrolyte absorbing more completely.

● Through perspective window can observe the changes inside the chamber during work.

● The upper chamber is driven by cylinder and guided by two linear guide bushings, which are flexible in up and down movement, and ensure the sealing environment requirements.

● Applicable for different sizes battery, adjust simply and conveniently.

● Adopting the split design of electric box and work box enables the machine can work in the glovebox or on production line.

● Attractive appearance, small size, easy to operate.

Technical Parameter

Model	STC-BJZ-300
Voltage	AC220V±10%, 50Hz
Power	0.5KW
High and low vacuum holding time	Multi segment cycle setting
Vacuum degree	≥-95KPa
Compressed air	0.4~0.5Mpa, if the unit is placed in a glovebox, air source should be used in accordance with the working air of the glovebox
Inner dimension of chamber	L320 * W320 * H175mm
Dimension	Electric box: L460 * W350 * H340mm Working box: L500 * W350 * H630mm
Weight	57kg

Warranty

1 year warranty with lifetime support.

FAQ

1. Are you a manufacturer ?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 years experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product ?

A : Yes. Most of our products can be customzied to meet different requirements.

3. Will you provide test video before dispatch?

A : Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service ?

A : Yes, we can dispatch professional engineer for on-site installation service.
