Pneumatic Tab Cylindrical Battery Spot Welding Machine

Pneumatic Tab Cylindrical Battery Spot Welding Machine
Pneumatic Tab Cylindrical Battery Spot Welding Machine

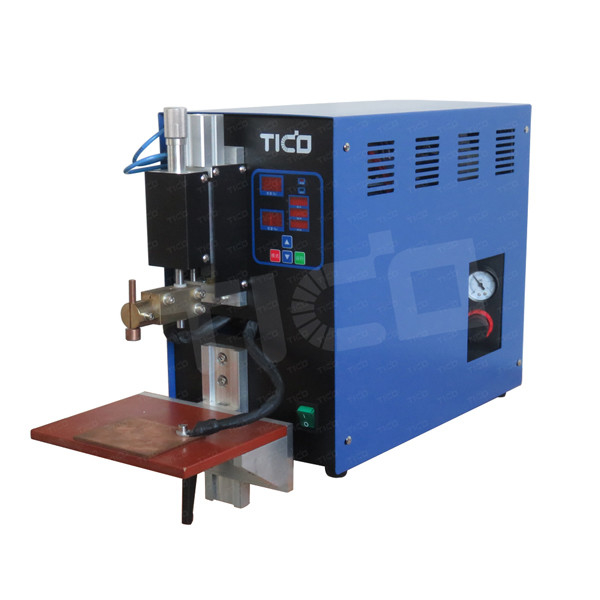

Large Image :  Pneumatic Tab Cylindrical Battery Spot Welding Machine

Product Details:
Place of Origin: Shenzhen, China
Brand Name: TICO
Model Number: STC-DH650
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden packing
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 200 sets per month

Pneumatic Tab Cylindrical Battery Spot Welding Machine

Product Name: AC Pulse Spot Welder Application: Cylindrical Battery Tabl Welding
Max Output Power: 10KVA Welding Current: 0~99A
Air Source: 0.3~0.7Mpa Welding Range: 0.03~0.25mm Thickness Welding Strip
High Light:

Pneumatic Battery Spot Welding Machine


Cylindrical Battery Spot Welding Machine


Tab battery spot welder

Pneumatic Cylindrical Battery Spot Welding Machine for Battery Tab Welding


Brief Introduction


This product is the enormously popular AC pulse tab welder, controlled by single chip microcomputer. Its capability is more stable and reliable. It is designed for producing high standard NiCr, Ni-Mh, Li batteries, used for welding cylinder cell negative terminal and tab (single pin welding).




• Welding current is stable; welding spot is even and has a good appearance with no black spot.

• Low pressure and watering phenomenon after Li-battery welding can be overcame; it is an ideal equipment for producing and assembling batteries.

• Controlled by single chip microcomputer, single-pulse, double-pulse and multipulse welding can be accomplished.

• All parameters are digitalized so parameter regulation is intuitive and accurate.

• Welding pin pressure can be regulated privately and conveniently so that the welding pressure is stable and reliable.

• Positioning welding is accurate, and applicable for cap cells welding.


Technical Parameters


 Brand name


 Power supply

 AC220V± 10%

 Max output power


 Welding current


 Air source


 Welding range

 0.03~0.25mm thickness welding strip








1 year warranty with lifetime support. Man-made damage is not covered.
