Product Details:
|
| Model: | STC-XJB500 | Power: | AC110V/220V Optional Upon Request |
|---|---|---|---|
| Mixing Container: | 500ml As Standard, Other Size Is Optional | Vacuum Pump: | Built-in Type |
| Dimension: | L330 * W320 * H570mm | Weight: | 35kg |
| High Light: | Electrode Battery Mixing Machine,220V Battery Mixing Machine,Lab Planetary Mixing Machine |
||

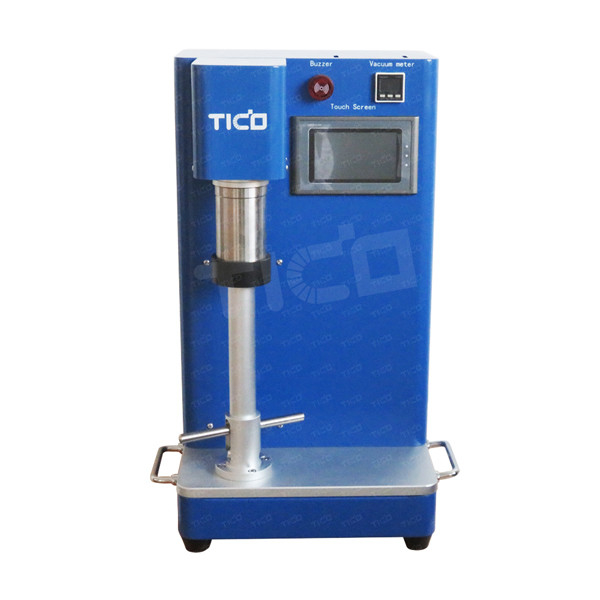

Battery Slurry Vacuum Mixer for Laboratory Research
Brief Induction
STC-XJB500 is a compact planetary vacuum mixer with vacuum mixing and dispersion function. It is widely used for battery slurrymixing, powder and ceramic material mixing. Built-in vacuum pump is designed for maximum remove the gas bubble.
Features
● The machine is standard equipped with double-shaft planetary mixing structure, screw mixing paddle.
● The equipment is designed with reversible mixing function that can meet the high speed and uniform mixing of higher viscosity slurry.
● Built-in vacuum system that can remove the bubbles during mixing.
● It can be operated in multi-segment speed. Mixing speed and time of each segment can be set.
● It is designed with bracket to ensure the safety during vacuum mixing.
● Touch screen allow easy setting for parameter.
Technical Details
| Brand name | TICO |
| Model | STC-XJB500 |
| Power | AC110V/220V optional upon request |
| Mixing container | 500ml as standard, other size is optional |
| Mixing container material | Stainless steel |
| Mixing speed | Max 600rpm, 3 segments programable |
| Mixing paddle | Single shaft |
| Mixing time | 0~99.99 hrs settable |
| Vacuum pump | Built-in type |
| Vacuum degree | -0.08Mpa |
| Dimension | L330 * W320 * H570mm |
| Weight | 35kg |
Warranty
1 year's warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer ?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 years experience for manufacturing battery lab research equipment. We owns a professional R&D department.
2. Do you accept customized product ?
A : Yes. Most of our products can be customzied to meet different requirements.
3. Will you provide test video before dispatch?
A : Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service ?
A : Yes, we can dispatch professional engineer for on-site installation service.
