Product Details:
|
| Features: | Mixing Speed Programable | Application: | Mixing Battery Slurry For Coin Cell Research |
|---|---|---|---|
| Power: | AC110V/220V (optional) | Mixing Container: | 150ml As Standard, Others Optional |
| Mixing Speed: | Max 600rpm | Vacuum Pump: | Built-in Type |
| High Light: | Vacuum Slurry Mixing Machine,Battery Slurry Mixing Machine,Coin Cell Planetary Mixing Machine |
||

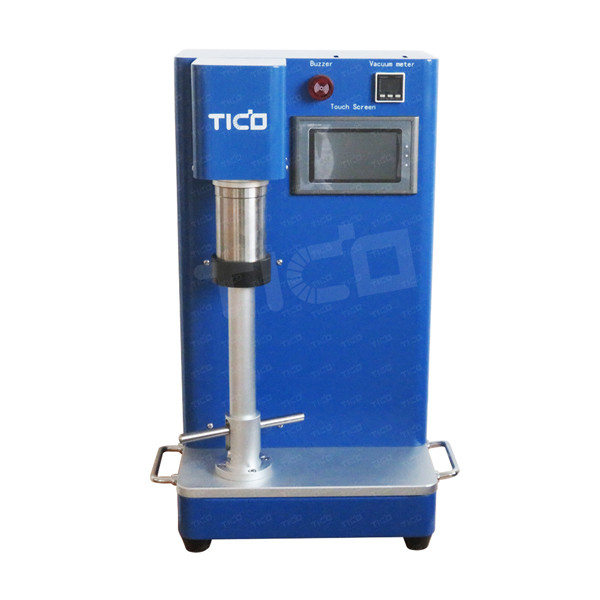

Coin Cell Planetary Vacuum Slurry Mixing Machine For Battery R&D
Brief Induction
STC-XJB150 is a compact planetary vacuum mixer with vacuum mixing and dispersion function. It is widely used for battery slurry mixing, powder and ceramic material mixing. Built-in vacuum pump is designed for maximum remove the gas bubble. 150ml mixing container is included, 250ml and 500ml mixing container can be optional as extra mixing container.
Features
● The mchine is standardly equipped with double-shaft planetary mixing structure, screw mixing paddle
● The equipment is designed with reversible mixing function that can meet the high speed and uniform mixing of higher viscosity slurries
● Built-in vacuum system that can remove the bubbles during mixing
● It can be operated in multi-segment speed. Mixing speed and time of each segment can be set
● It is designed with bracket to ensure the safety during vacuum mixing
● Touch screen is easy to set for parameter
Technical Details
| Brand name | TICO |
| Model | STC-XJB150 |
| Power | AC110V/220V optional upon request |
| Mixing container | 150ml as standard, other size is optional |
| Mixing container material | Stainless steel |
| Mixing speed | Max 600rpm, 3 segments programable |
| Mixing paddle | Single shaft |
| Mixing time | 0~600min |
| Vacuum pump | Built-in type |
| Vacuum degree | -0.08Mpa |
| Dimension | L330 * W320 * H570mm |
| Weight | 35kg |
Warranty
1 year's warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 years experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A : Yes. Most of our products can be customzied to meet different requirements.
3. Will you provide test video before dispatch?
A : Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A : Yes, we can dispatch professional engineer for on-site installation service.
