Product Details:
|
| Power: | 250W Heating Tube. When Heating The Power Consumption Is 500W | Sealing Blade Length: | 200mm, Customized Size Is Available |
|---|---|---|---|
| Sealing Width: | 5mm, Customized Size Is Available | Chamber Inner Dimension: | L325mm*W220mm*H170mm |
| Chamber External Dimension: | L500mm*W350mm*H630mm | Electric Box Dimension: | L560mm*W220mm*H340mm |
| Gas Consumption: | ≈0.2L Compressed Gas Per Sealing |

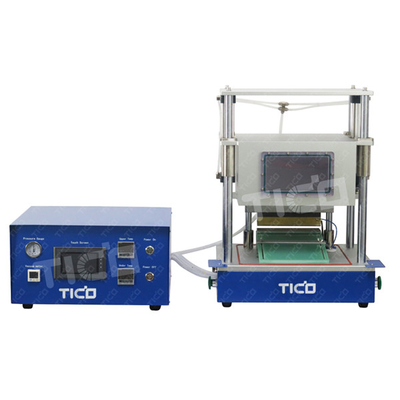

3-in-1 Hot Sealer for Edge & Vacuum Sealing & Vacuum Standing Equipment for Pouch Cell R&D
Product Introduction
STC-RJY200 is a 3 in 1 machine for pouch cell research. It can be compatible with the following functions: Pouch cell top & side heat sealing, hot pre-sealing, and vacuum standing.
Features
• It is a multiple functional machine, 3 in 1 machine for pouch cell research.
• Different vacuum standing parameters can be saved.
• Copper sealing head makes it firm sealing and high efficiency working.
• Upper and lower sealing head sealing time can be set.
• Through perspective window to observe the changes inside the chamber during work.
• This equipment is applicable for different battery sizes, simple to regulate.
• Compact size, it can be operated in glovebox.
• Touch screen operation, high automation.
• It is equipped with safety protection device to prevent injury.
Technical Parameter
| Brand name | TICO |
| Model | STC-RJY200 |
| Voltage | AC220V/AC110V optional |
| Power | 250W heating tube. When heating the power consumption is 500W |
| Vacuum degree | above -0.095Mpa |
| Vacuum standing time | 0~9999s adjustable, pressure adjustable |
| Sealing temperature | RT~250℃ adjustable |
| Temperature accuracy | ±2℃ adjustable |
| Hot sealing time | 0~99s adjustable |
| Hot sealing pressure | 0~6Kg/cm2 |
| Sealing blade length | 200mm, customized size is available |
| Sealing width | 5mm, customized size is available |
| Chamber inner dimensio | L325mm*W220mm*H170mm |
| Chamber external dimension | L500mm*W350mm*H630mm |
| Electric box dimension | L560mm*W220mm*H340mm |
| Compressed air | 0.5~0.7Mpa, when used in glovebox, the gas must be same with glovebox working gas |
| Gas consumption | ≈0.2L compressed gas per sealing |
| Working speed of air compressor | ≥180 times/h |
| Weight | 90kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
