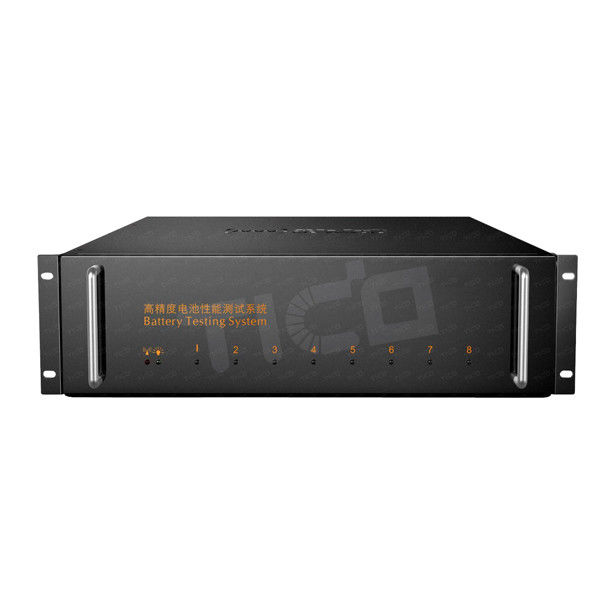

5V 5A 8 Channel Battery Testing Equipment 4 Ranges For Lab R&D

Name: 5V 5A 8 Channel Battery Testing Equipment 4 Ranges For Lab R&D
Brand: Shenzhen TICO Technology Co.,Ltd.
SKU: STC-4008Tn-5V5A
Price: 2,499.30 USD
Availability: InStock

Brand Name:	TICO
Model Number:	STC-4008Tn-5V5A
MOQ:	1 set
Price:	Negotiable
Delivery Time:	8~15 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen, China

Product Name:

5V5A 8 Channels Battery Testing Machine

Channel Qty:

Per Channel Current Range:

Range 1: 0.1uA~150uA, Range 2: 150uA~5mA, Range 3: 5mA~150mA, Range 4: 150mA~5A

IP Grade:

IP20

Noise:

<55dB

Server Operating System:

Windows 7

Packaging Details:

Standard export packing

Supply Ability:

50 sets per month

Highlight:

8 Channel Battery Testing Equipmen

5A Battery Testing Equipment

4 ranges Battery Testing Equipment

Product Description

5V5A 8 Channels Battery Testing Equipment for Lab R&D

Product Introduction

STC-4008Tn-5V5A 8 channels battery testing system is mainly used for communication battery testing and extra-high accuracy battery testing. It is with 4 ranges, 0.1μA~150μA, 150μA~5mA, 5mA~150mA, 150mA~5A. It features high accuracy and fast sampling.

Feature

● 4 ranges, 0.1μA~150μA, 150μA~5mA, 5mA~150mA, 150mA~5A.

● Extra-high accuracy, ±0.02% of FS.

● Fast response time, ≤100μs.

● Each channel is independent.

● Wide application.

Technical Parameter

Brand name	TICO
Input Power	AC 220V ±10% / 50Hz
Resolution	AD: 16bit; DA: 16bit
Input Resistance	≥500MΩ
Input Power	700W
Voltage	Per Channel Control Voltage Range	0.7V~5V
	Minimum discharge voltage	0.7V
	Accuracy	± 0.02% of FS
	Stability	± 0.02% of FS
Current	Per Channel Current Range	Range 1: 0.1uA~150uA, Range 2: 150uA~5mA, Range 3: 5mA~150mA, Range 4: 150mA~5A
	Accuracy	± 0.02% of FS, Range 1: ±30nA, Range 2: ±1uA, Range 3: ±30uA, Range 4: ±1mA
	Stability	± 0.005% of FS
Power	Per Channel Output Power	20W
	Stability	± 0.1% of FS
Time	Rise Time	The rise time for current to rise from 10%FS to 90%FS is 100μs
	Step Time Range	10ms ~ ≤(365*24 )hour/step, Time Form Support 00: 00: 00.000(h, min, s.ms)
Data Recording	Record Condition	Time△t: 10ms ~ 60000s
		Voltage△U: 1mA ~5V
		Current△I: 100nA~5V
	Record Frequency	100Hz
Charge	Discharge Mode	Constant Current Discharge, Constant Voltage Discharge, Constant Resistance Discharge, Pulse Discharge
	End Condition	Voltage, Current, Relative Time, Capacity
Discharge	Discharge Mode	Constant Current Discharge, Constant Voltage Discharge, Constant Resistance Discharge, Pulse Discharge
	End Condition	Voltage, Current, Relative Time, Capacity
DCIR test supported
Cycle	Loop Measure Range	1~65535 times
	Max Steps Per Loop	254
	Nested Loop	Max Support 4Layers
Protection	Power-down Data Protection
	Off-line Testing Function
	Setting Protection Condition, Setting Parameter: Low Voltage limit, Upper Voltage limit, Low Current limit, Upper Current limit, Delay Time
IP grade	IP20
Voltage and Current Testing Sample	4-wire connecting
Noise	<55dB
Database	MySQL Database
Communication of Upper Machine	TCP/IP Protocol
Data Output	EXCEL 2003, 2010, TXT
Communication Interface	Internet Access
Server Operating System	Windows 7
Per Unit Main Channels No.	8
Clamp	Coin cell clamp
Dimension	L615 * W443 * H125mm

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R& D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
