Semi Auto Cylindrical Cell Lab Equipment Lithium Ion Battery Electrode Winding Machine

Name: Semi Auto Cylindrical Cell Lab Equipment Lithium Ion Battery Electrode Winding Machine
Brand: Shenzhen TICO Technology Co.,Ltd.
SKU: STC-CJR-SM18
Price: 1,500.00 USD
Availability: InStock

Brand Name:	TICO
Model Number:	STC-CJR-SM18
MOQ:	1 set
Price:	Negotiable
Delivery Time:	15~20 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen, China

Product Name:

Battery Electrode Winding Machine

Applicable Product:

Ø10 ~ Ø32mm

Winding Mode:

Roll-type Separator, Sheet Electrode Manually Loading, Automatically Winding

Winding Pin Size:

Ø1.8 ~ Ø6mm Optional

Winding Capability:

5~10pcs /min ( Depending On The Battery Model )

Dimension:

L1450 X W1100 X H1150mm

Packaging Details:

Standard export wooden packing

Supply Ability:

50 sets per month

Highlight:

Semi Auto Cylindrical Cell Lab Equipment

AC220V Cylindrical Cell Lab Equipment

Electrode Winding Machine

Product Description

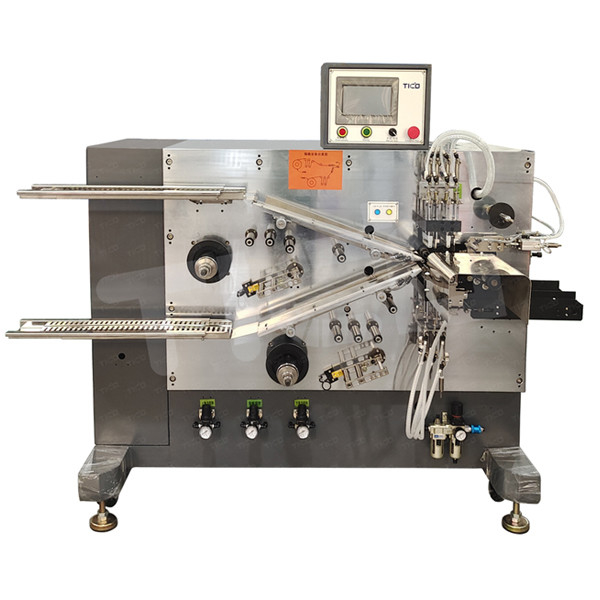

Semi-auto Lithium-ion Battery Electrode Winding Machine for Cylindrical battery R&D

Product Introduction

STC-CJR-SM18 is used for cylindrical cell winding, manually load the electrode, the winding will be completed automatically.

Key Features

• Separator consistent tension control.

• The electrode guide plate width can be adjusted to meet different size.

• Automatic end tape pasting.

• Automatic cutting.

• High efficiency winding.

Technical Parameter

Brand name	TICO
Voltage	AC220V
Applicable product	Ø10 ~ Ø32mm
Winding mode	Roll-type separator, sheet electrode Manually loading, automatically winding
Winding pin size	Ø1.8 ~ Ø6mm optional according to requirement
Winding capability	5~10pcs /min ( depending on the battery model )
Winding accuracy	≦0.5mm
Compressed air	0.4~0.7Mpa
Dimension	L1450 x W1100 x H1150mm

Material size requirement

Material	Length (mm)	Length (mm)	Thickness (mm)	ID (mm)	OD (mm)
Cathode electrode	150~3000	18~73	0.1~0.2	/	/
Anode electrode	150~3000	18~73	0.1~0.2	/	/
Separator	Roll	20~75	0.012~0.045	76.2	150
End tape	Roll	8~60	0.01~0.035	76.2	250

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R& D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
