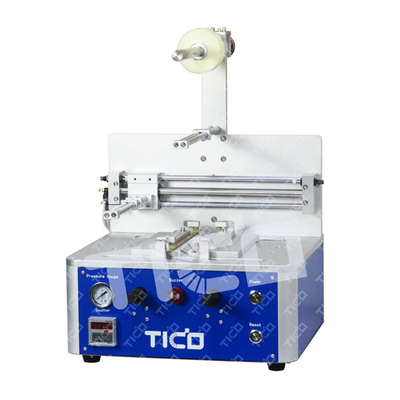

TICO New Design Semi-auto Electrode Stacking Machine for Pouch Cell R&D

I'm Online Chat Now

TICO New Design Semi-auto Electrode Stacking Machine for Pouch Cell R&D

TICO New Design Semi-auto Electrode Stacking Machine for Pouch Cell R&D
TICO New Design Semi-auto Electrode Stacking Machine for Pouch Cell R&D

Large Image :  TICO New Design Semi-auto Electrode Stacking Machine for Pouch Cell R&D

Product Details:
Place of Origin: Shen Zhen
Brand Name: TICO
Model Number: STC-SDP200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden packing
Delivery Time: 8~15 working days
Payment Terms: T/T
Supply Ability: 50 sets per month

TICO New Design Semi-auto Electrode Stacking Machine for Pouch Cell R&D

Description
Operation Mode: Semi-auto Stacker Working Voltage: AC110V/220V Optional
Stacking Size: L (20~200) Mm X W (20~200) Mm Separator Roll Diameter: 250mm Max.
Traveling Stroke: 300mm Air Source: 0.5~0.7 Mpa

TICO New Design Semi-auto Electrode Stacking Machine for Pouch Cell R&D



Product Introsuction



STC-SDP200 is a new designed semi-auto electrode stacking machine, which is used for stacking pouch cell anode&cathode and separator by "Z'' shape to make pouch cell core. Compared with the previous generation of product, this one integrates the control box and operation box together, smaller size, and saving space. The stacking size is adjustable from L20~200mm to W20~200mm.



Features



• Compared with previous generation product, this machine integrates the control box and operation box together, easy to operate.

• Smaller size than last generation, saving space.

• Stacking size is adjustable.

• Counter is designed.



Technical Parameter



 Brand name

 TICO
 Model  STC-SDP200
 Working voltage  AC110V/220V optional
 Stacking size  L (20~200) mm x W (20~200) mm
 Separator roll diameter  Max φ250mm
 Traveling stroke  300mm
 Air source  0.5~0.7 Mpa
 Operation mode  Semi-auto
 Dimension  L425 * W485 * H600mm
 Weigh  34kg



Warranty



1 year warranty with lifetime support. Man-made damage is not covered.



FAQ



1. Are you a manufacturer?



A: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R& D department.



2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.



3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.



4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
