| Brand Name: | TICO |
| Model Number: | STC-BMQ-G85 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Delivery Time: | 8~15 working days |
| Payment Terms: | T/T |

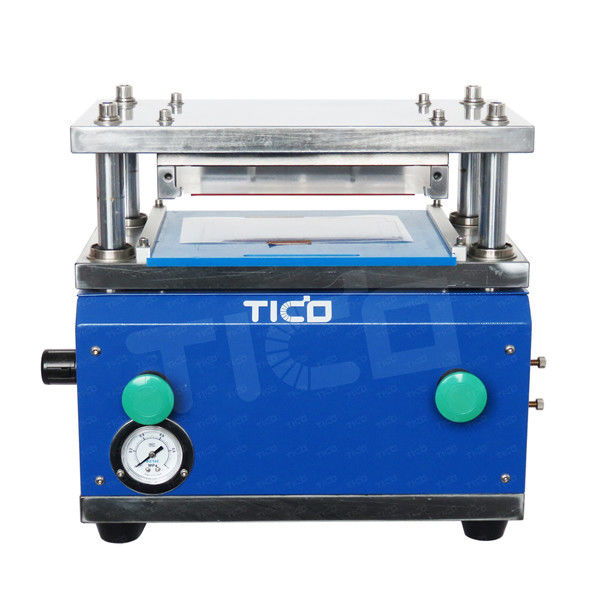

Gas Driven Electrode Disc Cutting Machine for Pouch Cell R&D
Brief Introduction
STC-BMQ-G85 is a gas driven electrode die cutter for pouch cell cathode / anode cutting for pouch cell preparation. It is a necessary equipment for pouch cell research with very high cutting accuracy. Gas driven mode ,electricity is not required. Compact size can be put inside glove box.
Features
● Different size of cutting die can be optional and easy to replace.
● The cutting no burr, no coated material drop.
● 2 Start buttons, the die can only go down only when pressing the 2 buttons at the time.The unique design to avoid hands get injured.
● Compact size can be put inside glove box.
● Long lifetime for the cutting die, >30000 times.
Techincal Parameter
| Brand name |
TICO |
| Model | STC-BMQ-G85 |
| Driven mode | Gas driven |
| Cutting die size | Max L85 * W65mm, customized size is available |
| Cuting accuracy | ±0.1mm |
| Air pressure | Max 1T, 0.7Mpa is suggested to cut battery electrode. If it is used inside glove box, the gas pressure must be same as glove box working |
| Material feeding | Manual |
| Dimension | L350 * W423 * H300mm |
| Weight | 40kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
|
|
