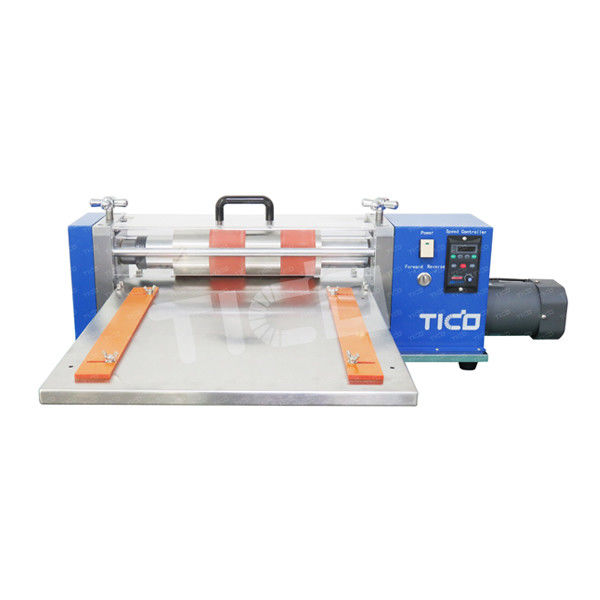

Desktop Cylindrical Cell Lab Equipment AC110V Semi Auto Electrode Slitting Machine

I'm Online Chat Now

Desktop Cylindrical Cell Lab Equipment AC110V Semi Auto Electrode Slitting Machine

Desktop Cylindrical Cell Lab Equipment AC110V Semi Auto Electrode Slitting Machine
Desktop Cylindrical Cell Lab Equipment AC110V Semi Auto Electrode Slitting Machine

Large Image :  Desktop Cylindrical Cell Lab Equipment AC110V Semi Auto Electrode Slitting Machine

Product Details:
Place of Origin: Shen Zhen
Brand Name: TICO
Model Number: STC-BFT300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden packing
Delivery Time: 8~15 working days
Payment Terms: T/T
Supply Ability: 50 sets per month

Desktop Cylindrical Cell Lab Equipment AC110V Semi Auto Electrode Slitting Machine

Description
Product Name: Cylindrical Battery Electrode Slitter Power: 200W
Slitting Width: Standard Is Combined Die For 56mm & 58mm, Customized Size Is Available From 20~300mm Slitting Thickness: 80~300μm Battery Electrode
Slitting Speed: Max 4m/min, It Is Adjustable Weight: 100kg
High Light:

Desktop Cylindrical Cell Lab Equipment

,

AC110V Cylindrical Cell Lab Equipment

,

Semi Auto Electrode Slitting Machine

Desktop Semi-auto Cylindrical Battery Electrode Slitting Machine



Product Introduction



STC-BFT300 is a semi-auto slitting machine for cylindrical cell electrode for battery research. The slitting width can be made according to requirement. It is a desktop equipment, simple to operate.



Features



● Slitting speed is adjustable.

● Protection cover is designed for safety operation.

● The die total width 300mm, slitting width can be made according to requirement.

● Slitting no burr, no powder drop.

● It is a desktop, saving space in lab.



Techinial Parametrer



 Brand name  TICO
 Model  STC-BFT300
 Working voltage  AC110V/220V optional
 Power  200W
 Slitting width

 Standard is combined die for 56mm & 58mm,

 Customized size is available from 20~300mm

 Slitting thickness  80~300μm battery electrode
 Slitting burr  ≤ 25μm
 Slitting speed  Max 4m/min, it is adjustable
 Dimension  L850 * W920 * H400mm
 Weight  100kg



Warranty



1 year warranty with lifetime support. Man-made damage is not covered.



FAQ



1. Are you a manufacturer?



A: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R&D department.



2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.



3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.



4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
