Product Details:
|
| Product Name: | Polymer Pouch Cell Pre-sealer | Power: | 500W Heating Tube. 1000W Comsumption When Heating |
|---|---|---|---|
| Vacuum Degree: | Above -0.095Mpa | Hot Sealing Time: | 0~99s Adjustable |
| Hot Sealing Pressure: | 0~6kg/cm2 Adjustable | Sealing Blade Length: | 200mm, Customized Size Is Available |
| Sealing Width: | 5mm, Customized Size Is Available | Weight: | 70kg |

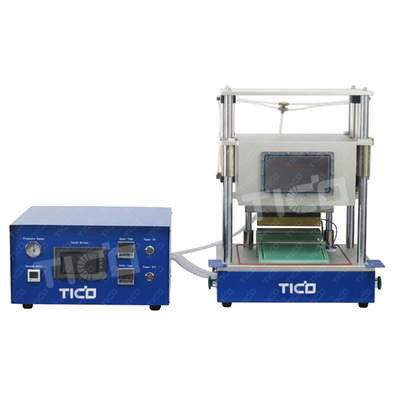

2-in-1 Vacuum Standing & Pre-sealing Equipment for Polymer Pouch Cell Lab Research
Product Introduction
STC-JY200 is a 2-in-1 machine for pouch cell research. The key feature of this machine is compatible with the following two functions. Vacuum standing for electrolyte diffusion after electrolyte filling and hot sealing for pouch cell first sealing.
Features
• The sealing head is made of copper, so that the heat transfer effect is good to save power consumption and improve work efficiency, more energy-saving.
• Upper and lower sealing head pressure can be set.
• The upper and lower heads are driven by a cylinder and guided by two linear guide sleeves, which can move up and down flexibly, and the guidance is accurate to ensure the parallelism of the product after edge sealing.
• Through perspective window to observe the changes inside the chamber during work.
• This equipment is applicable for different sizes of batteries and easy to regulate.
• Multi-stage cycles operation function makes the electrolyte absorbing more completely.
• Split design of main machine and control box makes the machine can work either in glovebox or on production line.
• The upper chamber is driven by a cylinder, guided by two linear guide bushes, flexible up and down movement, and accurate guidance to ensure product sealing requirements
• Touch screen operation, high automation.
• The chamber is made of aluminum alloy, which is corrosion-resistant and firm in structure.
Technical Parameter
| Brand name | TICO |
| Model | STC-JY200 |
| Voltage | AC220V/AC110V optional |
| Power | 500W heating tube. When heating, the power consumption is 1000W |
| Vacuum degree | above -0.095Mpa |
| Vacuum standing time | 0~9999s adjustable, pressure adjustable |
| Hot Sealing temperature | RT~250℃ adjustable |
| Temperature accuracy | ±2℃ |
| Hot sealing time | 0~99s adjustable |
| Hot sealing pressure | 0~6kg/cm2 adjustable |
| Sealing blade length | 200mm, customized size is available |
| Sealing width | 5mm, customized size is available |
| Chamber inner dimension | L500mm*W350mm*H170mm |
| Chamber external dimension | L500mm*W350mm*H630mm |
| Electric box dimension | L560mm*W220mm*H340mm |
| Compressed air | 0.5~0.7Mpa, when used in glovebox, the gas pressure must be same as the glovebox working gas pressure. |
| Gas consumption | ≈0.2L compressed gas per sealing |
| Working speed of air compressor | ≥ 180 times/ h |
| Weight | 70kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R& D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
