| Brand Name: | TICO |
| Model Number: | SSTC-VGB-22S |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Delivery Time: | 15~20 working days |
| Payment Terms: | T/T |
Brief Introduction

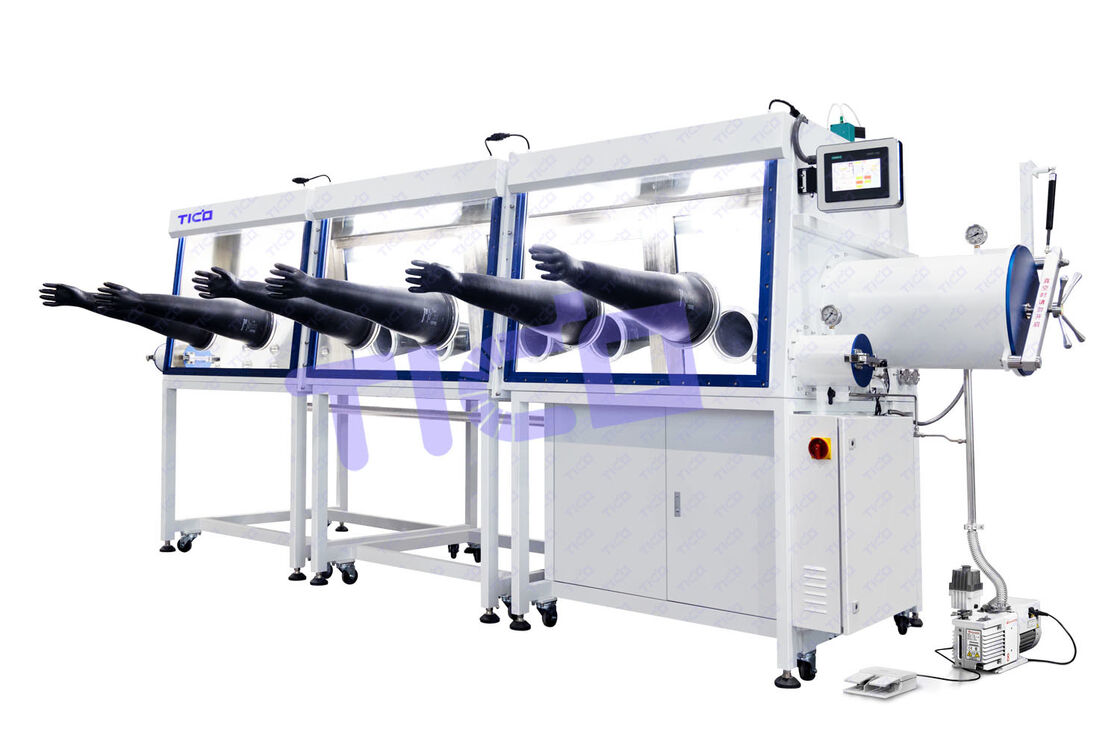

STC-VGB-22S is an internet of things vacuum glovebox, centralized equipment management intelligent analysis & early warning of equipment status, the abnormal alarm message is actively sended, remote fault diagnosis and online debugging. It is widely used for Lithium Battery, Physical Chemistry, OLED&PLED, Organometallic, Solar Cell, Semi-Conductor, Catalyst, Material Handling, Fine Chemicals, Polymeric Materials, Powder Metallurgy, Special Welding, Special Lamps, Nuclear Technology, Pharmaceutical etc.
Features
● Intelligent analysis & pre-warning of equipment conditions, the abnormal alarm message is actively sended, troubleshooting remotely and debugging online.
● H2O & O2<1ppm
● This machine own the advantage of low leak rate
● PLC control, and Color Touchscreen HMI, Automatic purge; Circulation; Regeneration; Pressure control; User Friendly Interface.
● It is widly applied in lab battery research and develpment
● Various of components used in this machine is world famous brand
● Two parts, double work stataion.
Main Data
1) H2O & O2: <1ppm
2) Leakage rate of box: 0.05 vol％/h
Technical Parameter
| Glove Box House | ||
| House | Material | Stainless steel type 304, thickness 3mm |
| Inside surface | Brushed finish | |
| Outside surface | Enameled, White | |
| Inside dimension | L1220 * W750 * H900mm | |
| Window | Sight safety glass with thin film, thickness is 8mm | |
| Glove ports | POM, O-ring sealed | |
| Gloves |
Type: Butyl; Thickness 0.4mm; Dia: 8 inch, length 32 inch |
|
| Dust Filter | 0.3 micron 1 gas inlet and 1 gas outlet filter included | |
| Box Light | LED front mounted | |
| Feedthroughs | DN 40 KF: several pieces for customers’ usage
Electrical feedthrough: 1 electrical plug for inside (220V), Power need included |
|
| Main Antechamber | ||
| Chamber | Inside dimension: ø 360mm,length =600mm | |
| Material: Stainless steel type 304 | ||
| Surface: Brushed finish inside and Painted same colour outside (white) | ||
| Accessories | Door: Double door, anodized aluminium | |
| Thickness: 10mm | ||
| Manometer: Analog display. | ||
| Control | manual operation | |
| Gas Purification | ||
| Purifier Function | Removal of H2O and O2 | |
| Container material: Stainless steel type 304 | ||
|
Absorber unit: Copper catalyst: 5Kg Molecular sieve: 5Kg |
||
| Capacity of purifying: removal of 60L O2, removal of 2Kg H2O | ||
| H2O and O2: less than 1ppm | ||
| Gas Circulation | Working gas: Nitrogen, Argon and Helium | |
| Blower: 90m3 /h | ||
| Regeneration | Operation: Auto. PLC controlled Regeneration. | |
| Regeneration gas: working gas / H2 mixture (H2: 5-10%) | ||
| Pump | Type: 12m3 /h Rotary vane pump, Oil mist, Angle valves, Gas ballast control | |
| Valves | Main valves: DN 40 KF electro-pneum, Angle valves | |
| Controlling system | ||
| Function | Includes self-diagnosis, electric failure and restart, pressure controlling and self-adapt, circulation controlling, code protection, union controlling adopts, SIEMENS PLC touch screen etc. | |
| Pressure controlling | The pressure in the box is controlled by PLC, the pressure can be settled between +/- 10mbar,while beyond +/- 12mbar the system will automatically protect itself. | |
| Foot switch | Controlling the pressure,easy to raise or depress the pressure. | |
| Display system | Siemens PLC, which can display the operation state, pressure and system record, etc. | |
| Controllling of vacuum system | British EDWARDS vacuum pump, which can be controlled by PLC or by hand. The type is 12m3 /h. It can vacuumize the antechamber and keep the balance of the pressure. The limit vacuum is ≤ 2x10-1 pa. | |
| Moisture analyzer | Measuring Range: 0～500ppm. Display by PLC. | |
| Oxygen analyzer | Measuring range of 0~1000ppm. Display by PLC. | |
| Solvent absorber | Absorber unit: activated carbon: 2Kg | |
| IOT System | ||
| Product Function |
Login control system from WeChat Public Number. Login control system by scanning QR code. Real-time monitoring of device status. Data backup and historical data query. Alarm message informed by SMS or Email. Remote debugging and fault diagnosis. One key to contact customer service. Check the help manual online.
|
|
Warranty
1 year's warranty with lifetime technical support. Man made damage is not included.
FAQ
1. Are you a manufacturer ?
A: Yes, our factory is located in Shenzhen, China,
We have more than 10 years experience for manufacturing battery lab research equipment. We owns a professional R&D department.
2. Do you accept customized product ?
A : Yes. Most of our products can be customzied to meet different requirements.
3. Will you provide test video before dispatch?
A : Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service ?
A : Yes, we can dispatch professional engineer for on-site installation service.
|
|
