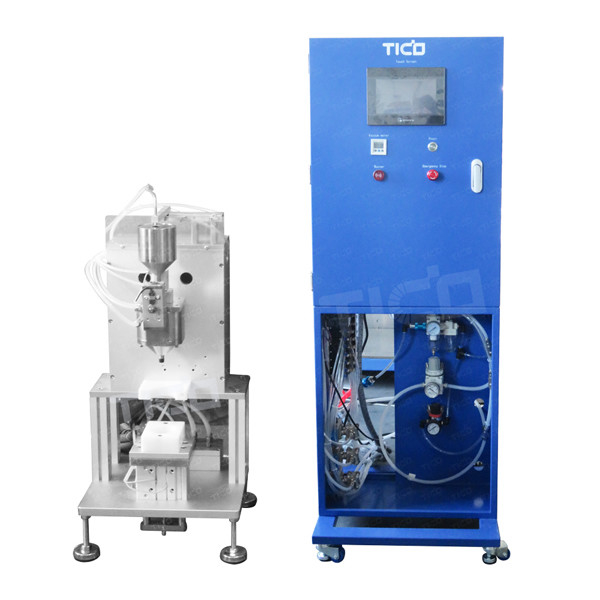

1.5KW TICO Supercapacitor Equipment Battery Electrolyte Filling Machine

I'm Online Chat Now

1.5KW TICO Supercapacitor Equipment Battery Electrolyte Filling Machine

1.5KW TICO Supercapacitor Equipment Battery Electrolyte Filling Machine
1.5KW TICO Supercapacitor Equipment Battery Electrolyte Filling Machine

Large Image :  1.5KW TICO Supercapacitor Equipment Battery Electrolyte Filling Machine

Product Details:
Place of Origin: Shen Zhen, China
Brand Name: TICO
Model Number: STC-SZY60
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden packing
Delivery Time: 15~20 working days
Payment Terms: T/T
Supply Ability: 50 sets per month

1.5KW TICO Supercapacitor Equipment Battery Electrolyte Filling Machine

Description
Product Name: Supercapacitor Electrolyte Filler Equipment Applicable Product: φ60mm Supercapacitor
Filling Volume: 0~250ml Adjustable Vacuum: Above -98KPa During Filling
Voltage: AC220V/50Hz Power: 1.5KW
High Light:

TICO Supercapacitor Equipment

,

1.5KW Supercapacitor Equipment

,

Electrolyte Filling Machine

Supercapacitor Electrolyte Filling Machine



Product Introsuction



It is used for supercapacitor electrolyte filling. Vacuuming filling and pressurization working process is used, which features high consistency, reliability and safety of electrolyte absorption.



Features



•  The special two-way pneumatic valve is used to avoid blockage, and the internal SUS 316 and PTFE materials are highly resistant to corrosion.

•  The process of vacuuming, injection and standing under alternating vacuum and pressure features high efficiency and accuracy, and easy and reliable operation.

•  The vacuuming time, high vacuum, low vacuum, injection volume, standing time, pressurization time, pressure and pressure relief time can be set.

•  The connectors of the injection tank are made of stainless steel, with corrosion-resistant PE hoses. The whole machine is corrosion-resistant, and its body is made of 6 series aluminum alloy.



Technical Parameter



 Applicable product  φ60mm supercapacitor
 Filling volume  0~250ml adjustable
 Vacuum  The vacuum pressure is above -98KPa during Filling (the vacuum pump should be prepared by the user).
 Nitrogen (consistent with the working gas of the glove box)  ≥0.4MPa
 Voltage  AC220V/50Hz
 Power  1.5KW
 Dimension  L400×W400×H860mm (calculated by the maximum height 3000F, H138mm)



Warranty



1 year warranty with lifetime support. Man-made damage is not covered.



FAQ



1. Are you a manufacturer?



A: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R&D department.



2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.



3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.



4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
