3 Part Quick To Open Vacuum Glove Box Laboratory Equipment PLC Control For Battery Polit Line

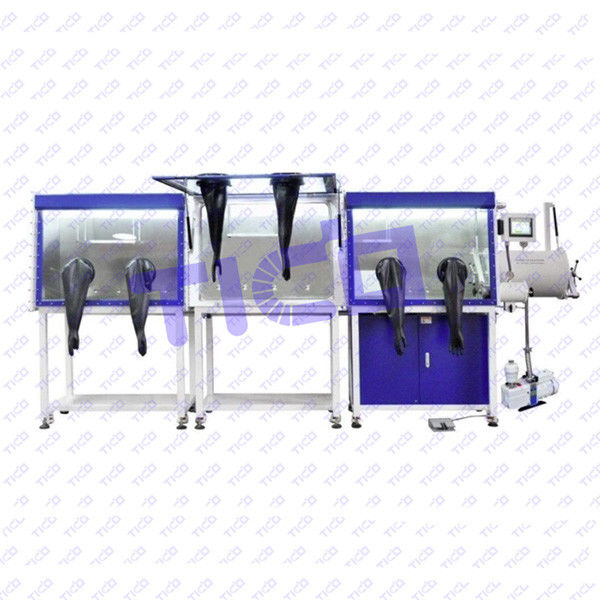

3 Part Quick to Open Vacuum Glove Box for Battery Pilot Line

Product Introduction

STC-VGB-33S vacuum glove box is used for battery pilot line, and factory production. It is a quick to open vacuum glove chamber with three seactions. This machine is an ideal equipment for battery pilot line and factory production.

Feature

● High capacity purifier.

● Ultra low leakage rate.

● Energy efficient mode.

● IOT system.

● PLC Control and Color Touchscreen HMI.

● Machined Manifold Style Valve Block.

● Long Life Moisture and Oxygen Analyzers.

● Wide Applications.

Technical Parameter

1. Case

• Case

Material: Stainless steel type 304, thickness 3mm

Inside surface: Brushed finish

Outside surface: Enameled, White

• Window

Inclined window: sight safety glass with thin film, thickness 8 mm

• Glove ports

Material: alumina, O-ring sealed

• Gloves

Type: Butyl, thickness 0.4mm

         Dia.: 8 inches, length 32 inch

• Dust Filter

Dust filter: 0.3 micron

1 gas inlet and 1 gas outlet filter included

• Shelves

Stainless shelves: 3 layers mounted inside

• Box Light

LED lamp: Front mounted above each window

• Feedthroughs

          DN 40 KF: several pieces for customers’ usage

2. Main antechamber

• Chamber

Dimension: ø 360mm,length =600mm

Material: 304 stainless steel

Surface: Brushed finish inside and painted same color outside (white)

• Accessories

Door: Double door, anodized aluminium

Thickness 10 mm

Manometer: Analog display

• Control

Operation: manual operation.

3. Small antechamber

• Chamber

Size: Dia. 150mm, Length 300mm, 100 mm access into the glove box

Material: 304 stainless steel

Surface: Brushed finish inside and painted, White

• Accessories

Door: Double door,Press Type,Sliding tray trapezium

Manometer: Analog display

• Control Operation: manual operation via hand valve

4. Gas Purification

• Purifier

Function: Removal of H2O and O2

Container material: 304 stainless steel

Absorber unit: Copper catalyst: 5Kg

Molecular sieve: 5 Kg

Capacity of purifying: removal of 60L O2

removal of 2Kg H2O

H2O and O2: < 1ppm

• Gas Circulation

Working gas: Nitrogen, Argon and Helium

Blower: 90m3/h

• Regeneration

Operation: Auto. PLC controlled Regeneration.

Regeneration gas: working gas / H2 mixture (H2: 5-10%)

• Pump

Type: 12m3 /h Rotary vane pump, Oil mist

Angle valves, Gas ballast control

• Valves

Main valves: DN 40 KF electro-pneum, Angle valves

5. Controlling system

• Function:includes self-diagnosis, electric failure and restart, pressure controlling and self-adapt, circulation controlling, password protection, SIEMENS PLC touch screen etc.

• Pressure controlling: The pressure in the box is controlled by PLC, the pressure can be settled between +/- 10mbar,while beyond +/- 12mbar the system will automatically protect itself.

• Foot switch:controlling the pressure,easy to raise or depress the pressure

6. Display system

Siemens PLC, which can display the operation state, pressure and system record, etc.

7. Controlling of vacuum system

British EDWARDS vacuum pump, which can be controlled by PLC or by hand. The type is 12m3 /h. It can vacuumize the antechamber and keep the balance of the pressure. The limit vacuum is ≤ 2x10-1pa.

8.  Analyzer

• Moisture analyzer:

Measuring Range: 0～500ppm

P2O5 moisture sensor is adopted in the moisture analyzer, corrosion resistant, renewable by acid cleaning, especially applicable for corrosive environment like lithium battery and organometallics to avoid discarding once contaminated.

• Oxygen analyzer

Measuring range of 0~1000ppm

ZrO2 oxygen solid sensor.

5.9 IOT System

Product Function

• Login control system from WeChat Public Number.
• Login control system by scanning QR code.
• Real-time monitoring of device status.
• Data backup and historical data query.
• Alarm message informed by SMS or Email.
• Remote debugging and fault diagnosis.
• One key to contact customer service.
• Check the help manual online.

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.
